NSK 53200U bearings
53200U, NSK, Thrust ball bearing, With aligning seat washer
- Measurement system
- Metric
- Bore diameter
- 10.000 mm
- Outside diameter
- 26.000 mm
- Height
- 13.000 mm
- Ca
- 12800 N
- C0a
- 17100 N
- Limiting speed
- 9000 r/min
- Net weight
- 0.036 kg
- Number of rows
- 1
- Cage
- Steel sheet metal
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
In stock
Technical specification for NSK 53200U
| NSK Designation | 53200U | |
|---|---|---|

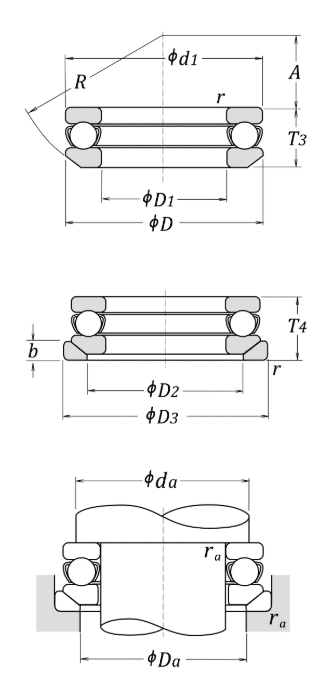

| Boundary Dimensions | ||
| d | 10 mm | Bore diameter |
| D | 26 mm | Outside diameter |
| T3 | 11.6 mm | Height |
| T4 | 13 mm | Height bearing include seat washer |
| r (min.) | 0.6 mm | Chamfer dimension |
| Basic Load Ratings | ||
| Ca | 12800 N | Basic dynamic load rating |
| C0a | 17100 N | Basic static load rating |
| Speeds | ||
| Oil | 9000 r/min | Oil-bath lubrication |
| Grease | 6000 r/min | Grease lubrication |
| Dimensions | ||
| A | 8.5 mm | Centre height housing washer sphere |
| R | 22 mm | Radius sphered housing washer |
| b | 3.5 mm | Height sphered housing washer |
| D2 | 18 mm | Inner diameter sphered seat washer |
| d1 | 26 mm | Outside diameter shaft washer |
| D3 | 28 mm | Outside diameter sphered housing washer |
| D1 | 12 mm | Inner diameter housing washer |
| Abutment and Fillet Dimensions | ||
| da min. | 20 mm | Diameter of shaft abutment |
| Da max. | 16 mm | Diameter of housing abutment |
| ra max. | 0.6 mm | Radius of shaft or housing fillet |
| Mass | ||
| Mass (approx.) | 0.036 kg | |
53200U, NSK, Single-Direction Thrust Ball Bearings, With aligning seat washer. Boundary dimensions: 10 x 26 x 13 mm.
