NSK 5217 bearings
5217, NSK, Double-row angular contact ball bearings
- Measurement system
- Metric
- Bore diameter
- 85.000 mm
- Outside diameter
- 150.000 mm
- Width
- 49.200 mm
- Cr
- 128000 N
- C0r
- 110000 N
- Limiting speed
- 3600 r/min
- Net weight
- 3.4 kg
- Number of rows
- 2
- Contact angle deg
- 25
- Sealing
- Without
- Cage
- Steel sheet metal
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- None
- Relubrication feature
- Without
In stock
Technical specification for NSK 5217
| Parts Number | 5217 | |
|---|---|---|
| Brand | NSK | |
| Cage | Pressed steel | |
| Description | Double-Row Angular Contact Ball Bearings | |

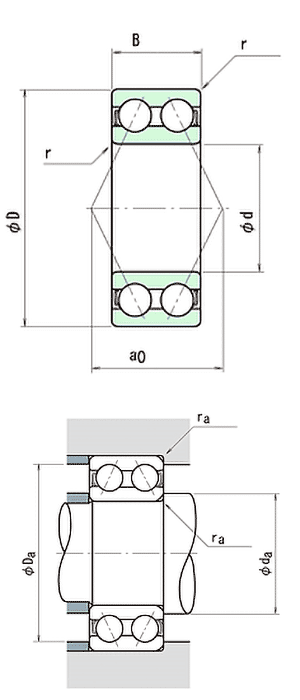

| Boundary Dimensions | ||
| d | 85 mm | Bore diameter |
| D | 150 mm | Outside diameter |
| B | 49.2 mm | Width |
| r min. | 2 mm | Chamfer Dimension |
| Basic Load Ratings | ||
| Cr | 128000 N | Basic Dynamic Load Rating |
| C0r | 110000 N | Basic Static Load Rating |
| Speeds | ||
| Grease | 2800 min-1 | Grease lubrication |
| Oil | 3600 min-1 | Oil-bath lubrication |
| Dimensions | ||
| a0 | 75.3 mm | Load center spacings |
| Abutment and Fillet Dimensions | ||
| da min. | 95 mm | Diameter of Shaft Abutment |
| Da max. | 140 mm | Diameter of Housing Abutment |
| ra max. | 2 mm | Radius of Shaft or Housing Fillet |
| Mass | ||
| Weight | 3.4 kg (approx.) | |
5217, NSK, double-row angular contact ball bearings, Bore diameter: 85 mm; Outside diameter 150 mm; Width 49.2 mm.
NSK 5217 bearing is basically a back-to-back of two single-row angular contact ball bearings, but their inner and outer rings are each integrated into one. So axial loads in both directions can be sustained, and the capacity to sustain moments is good.
