NTN NATR6 bearings
NTN roller followers with cage
- Measurement system
- Metric
- Bore diameter
- 6.000 mm
- Outside diameter
- 19.000 mm
- Width
- 12.000 mm
- Width, ourter ring
- 11.000 mm
- Width, inner ring
- 12.000 mm
- Cr
- 4750 N
- C0r
- 5400 N
- Limiting speed
- 20000 r/min
- Net weight
- 0.025 kg
- Number of rows
- 1
- Sealing
- Shield on both sides
- Cage
- With
- Outer diameter type
- Spherical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- Without
- Relubrication feature
- With
- Coating
- Without
In stock

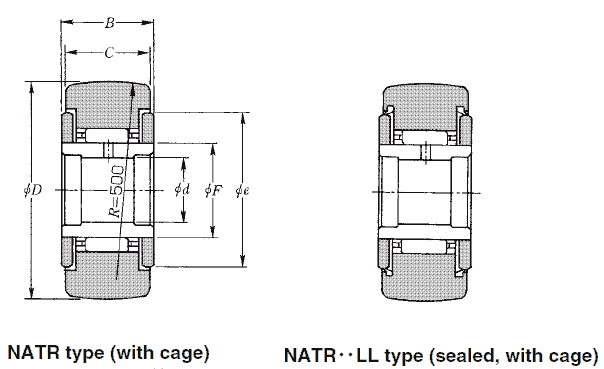

Technical specification for NTN NATR6
| Bearing number | NATR6 | |
|---|---|---|
| Brand | NTN | |
| Type | Roller followers with cage | |
| d | 6 | Dimensions mm |
| D | 19 | |
| B | 12 | |
| C | 11 | |
| e | 14 | |
| F | 10 | |
| Cr | 4750 N | Basic dynamic load rating |
| C0r | 5400 N | Basic static load rating |
| Track load capacity | 1380 N | Spherical outer ring |
| Limiting speed | 15000 r/min | Grease lubrication |
| 20000 r/min | Oil lubrication | |
| Mass | 0.025 kg | (approx.) |
NTN NATR6 are roller followers with cage.
- NATR: type code
- 6: Bore diameter 6 mm
Please refer to Bearing nomenclature
