INA RNA2208-2RSR bearings
Yoke type track rollers RNA22..-2RSR, without axial guidance, lip seals on both sides
- Measurement system
- Metric
- Bore diameter
- 48.000 mm
- Outside diameter
- 80.000 mm
- Width
- 22.700 mm
- Width, ourter ring
- 22.700 mm
- Cr
- 26000 N
- C0r
- 41500 N
- Limiting speed
- 850 r/min
- Net weight
- 0.495 kg
- Number of rows
- 1
- Sealing
- Seal on both sides
- Cage
- Steel sheet
- Outer diameter type
- Crowned
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Other
- Lubricant in bearing
- Grease
- Relubrication feature
- Without
In stock
Technical specification for INA RNA2208-2RSR
| Part Number | RNA2208-2RSR | |
|---|---|---|
| Replaces | RNA 2208 PP , RNA 2208.2RS , RNA2208.2RS | |

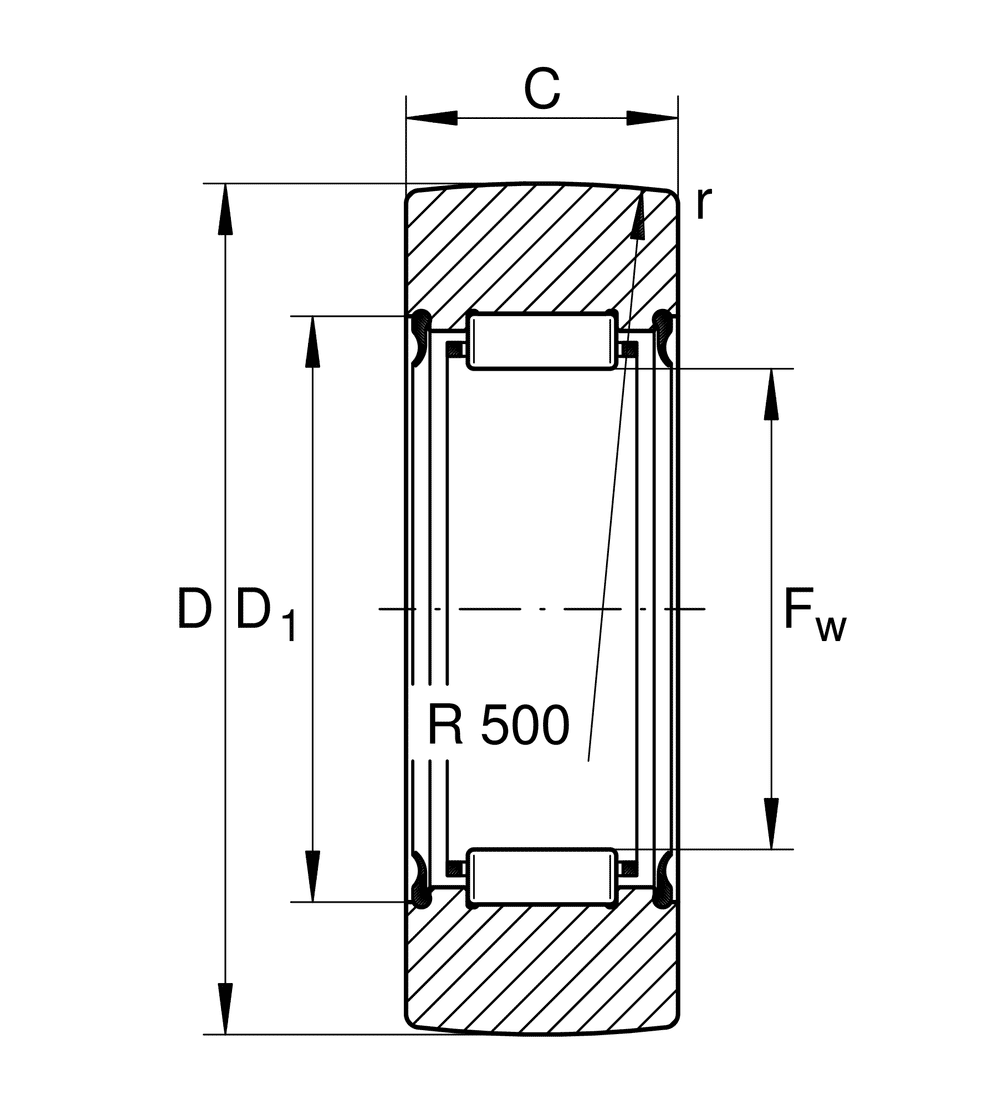

| Main Dimensions & Performance Data | ||
| Fw | 48 mm | Under roller diameter |
| D | 80 mm | Outside diameter |
| C | 22.7 mm | Width, outer ring |
| Cr w | 26000 N | Basic dynamic load rating, radial |
| C0r w | 41500 N | Basic static load rating, radial |
| Cur w | 5400 N | Fatigue load limit, radial |
| nD G | 850 1/min | Speed on permanent grease lubrication |
| m | 0.495 kg | Weight |
| Dimensions | ||
| D1 min | 57 mm | Minimum mounting dimension |
| rmin | 1.1 mm | Minimum chamfer dimension |
| R | 500 mm | Radius of outer ring outside profile |
INA RNA2208-2RSR - Yoke type track rollers RNA22..-2RSR, without axial guidance, lip seals on both sides.
Replaces: RNA 2208 PP , RNA 2208.2RS , RNA2208.2RS
