INA NNTR140X340X162-2ZL bearings
Yoke type track roller NNTR..-2ZL, CRB, full complement roller set, two-row, with inner ring, 3 ribs on outer ring
- Measurement system
- Metric
- Bore diameter
- 140.000 mm
- Outside diameter
- 340.000 mm
- Width
- 162.000 mm
- Width, ourter ring
- 160.000 mm
- Width, inner ring
- 162.000 mm
- Cr
- 1200000 N
- C0r
- 1970000 N
- Limiting speed
- 220 r/min
- Net weight
- 87.3 kg
- Number of rows
- 2
- Sealing
- Seal on both sides
- Cage
- Without
- Bore type
- Cylindrical
- Outer diameter type
- Crowned
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Other
- Internal clearance
- Between C2 and CN
- Lubricant in bearing
- Grease
- Relubrication feature
- With
In stock
Technical specification for INA NNTR140X340X162-2ZL
| Part Number | NNTR140X340X162-2ZL | |
|---|---|---|
| Main Dimensions & Performance Data | ||
| d | 140 mm | Bore diameter |
| D | 340 mm | Outside diameter |
| B | 162 mm | Width, inner ring |
| Cr w | 1200000 N | Basic dynamic load rating, radial |
| C0r w | 1970000 N | Basic static load rating, radial |
| Cur w | 265000 N | Fatigue load limit, radial |
| nD G | 220 1/min | Speed on permanent grease lubrication |
| F0r per | 1970000 N | Permissible static load, radial |
| Fr per | 1450000 N | Permissible dynamic load outer ring, radial |
| m | 87.3 kg | Weight |

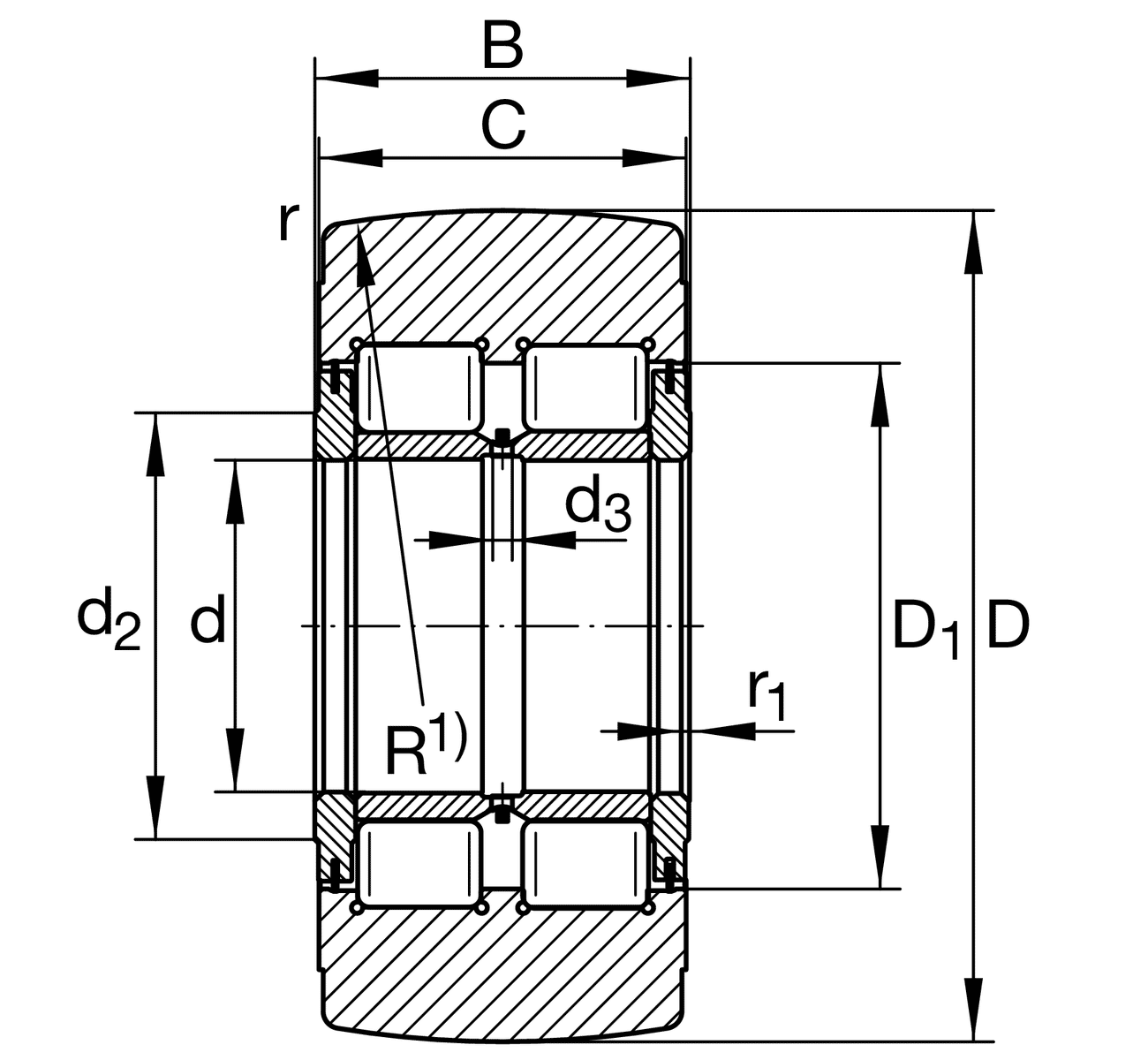

| Mounting dimensions | ||
| d2 | 186 mm | Stop diameter of thrust washer |
| D1 | 228 mm | Mounting dimension |
| d3 | 8 mm | Diameter lubrication hole |
| R | 15000 mm | Radius of outer ring outside profile |
| 6 | Number of lubrication holes | |
| Mounting dimensions | ||
| C | 160 mm | Width, outer ring |
| rmin | 4 mm | Minimum chamfer dimension |
| r1 min | 4 mm | Minimum chamfer dimension |
INA NNTR140X340X162-2ZL - Yoke type track roller NNTR..-2ZL, CRB, full complement roller set, two-row, with inner ring, 3 ribs on outer ring, not pallet changer.
NNTR140X340X162-2ZL INA is ready-to-fit cylindrical roller bearings of double row design. It have particularly thick-walled outer ring with a crowned outside surface . NNTR140X340X162-2ZL INA can support high radial loads and tolerate axial loads which are due to small misalignments, skewed running or temporary contact running impacts.
