INA NATV30-PP bearings
Yoke type track rollers NATV..-PP, full complement needle roller set, with axial guidance, axial plain washers on both sides
- Measurement system
- Metric
- Bore diameter
- 30.000 mm
- Outside diameter
- 62.000 mm
- Width
- 29.000 mm
- Width, ourter ring
- 28.000 mm
- Width, inner ring
- 29.000 mm
- Cr
- 30000 N
- C0r
- 63000 N
- Limiting speed
- 850 r/min
- Net weight
- 0.458 kg
- Number of rows
- 1
- Sealing
- Seal on both sides
- Cage
- Without
- Bore type
- Cylindrical
- Outer diameter type
- Crowned
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Other
- Internal clearance
- Between C2 and CN
- Lubricant in bearing
- Grease
- Relubrication feature
- With
In stock
Technical specification for INA NATV30-PP
| Part Number | NATV30-PP | |
|---|---|---|
| Main Dimensions & Performance Data | ||
| d | 30 mm | Bore diameter |
| D | 62 mm | Outside diameter |
| B | 29 mm | Width of the bearing |
| Cr w | 30000 N | Basic dynamic load rating, radial |
| C0r w | 63000 N | Basic static load rating, radial |
| Cur w | 9000 N | Fatigue load limit, radial |
| nD G | 850 1/min | Speed on permanent grease lubrication |
| F0r per | 63000 N | Permissible static load, radial |
| Fr per | 55000 N | Permissible dynamic load outer ring, radial |
| m | 0.458 kg | Weight |

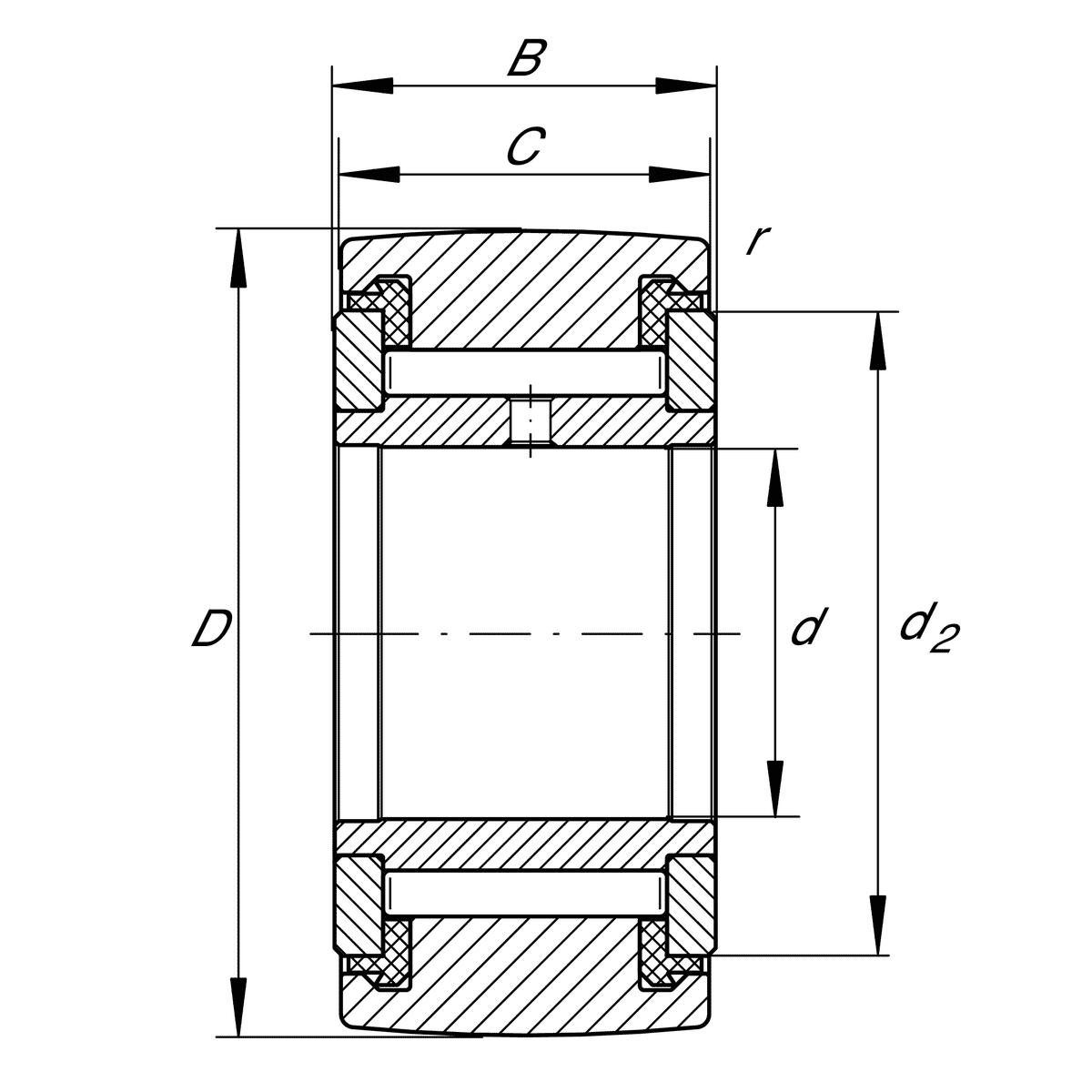

| Dimensions | ||
| C | 28 mm | Width, outer ring |
| d2 | 51 mm | Outside diameter of thrust washer |
| rmin | 1 mm | Minimum chamfer dimension |
INA NATV30-PP - Yoke type track rollers NATV..-PP, full complement needle roller set, with axial guidance, axial plain washers on both sides.
NATV30-PP INA is single row units mounted on shafts. It comprise thick-walled outer ring with a profiled outside surface and full complement needle roller sets. NATV30-PP INA can support high radial loads as well as axial loads arising from slight misalignment and skewed running.
