INA NATR35-PP bearings
Yoke type track rollers NATR..-PP, with axial guidance, axial plain washers on both sides
- Measurement system
- Metric
- Bore diameter
- 35.000 mm
- Outside diameter
- 72.000 mm
- Width
- 29.000 mm
- Width, ourter ring
- 28.000 mm
- Width, inner ring
- 29.000 mm
- Cr
- 24800 N
- C0r
- 45000 N
- Limiting speed
- 1000 r/min
- Net weight
- 0.6 kg
- Number of rows
- 1
- Sealing
- Seal on both sides
- Cage
- Steel sheet
- Bore type
- Cylindrical
- Outer diameter type
- Crowned
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Other
- Internal clearance
- Between C2 and CN
- Lubricant in bearing
- Grease
- Relubrication feature
- With
In stock
Technical specification for INA NATR35-PP
| Part Number | NATR35-PP | |
|---|---|---|
| Relubrication feature | Via inner ring | |
| Main Dimensions & Performance Data | ||
| d | 35 mm | Bore diameter |
| D | 72 mm | Outside diameter |
| B | 29 mm | Width, inner ring |
| Cr w | 24800 N | Basic dynamic load rating, radial |
| C0r w | 45000 N | Basic static load rating, radial |
| Cur w | 6000 N | Fatigue load limit, radial |
| nD G | 1000 1/min | Speed on permanent grease lubrication |
| F0r per | 45000 N | Permissible static load, radial |
| Fr per | 45000 N | Permissible dynamic load outer ring, radial |
| m | 0.6 kg | Weight |

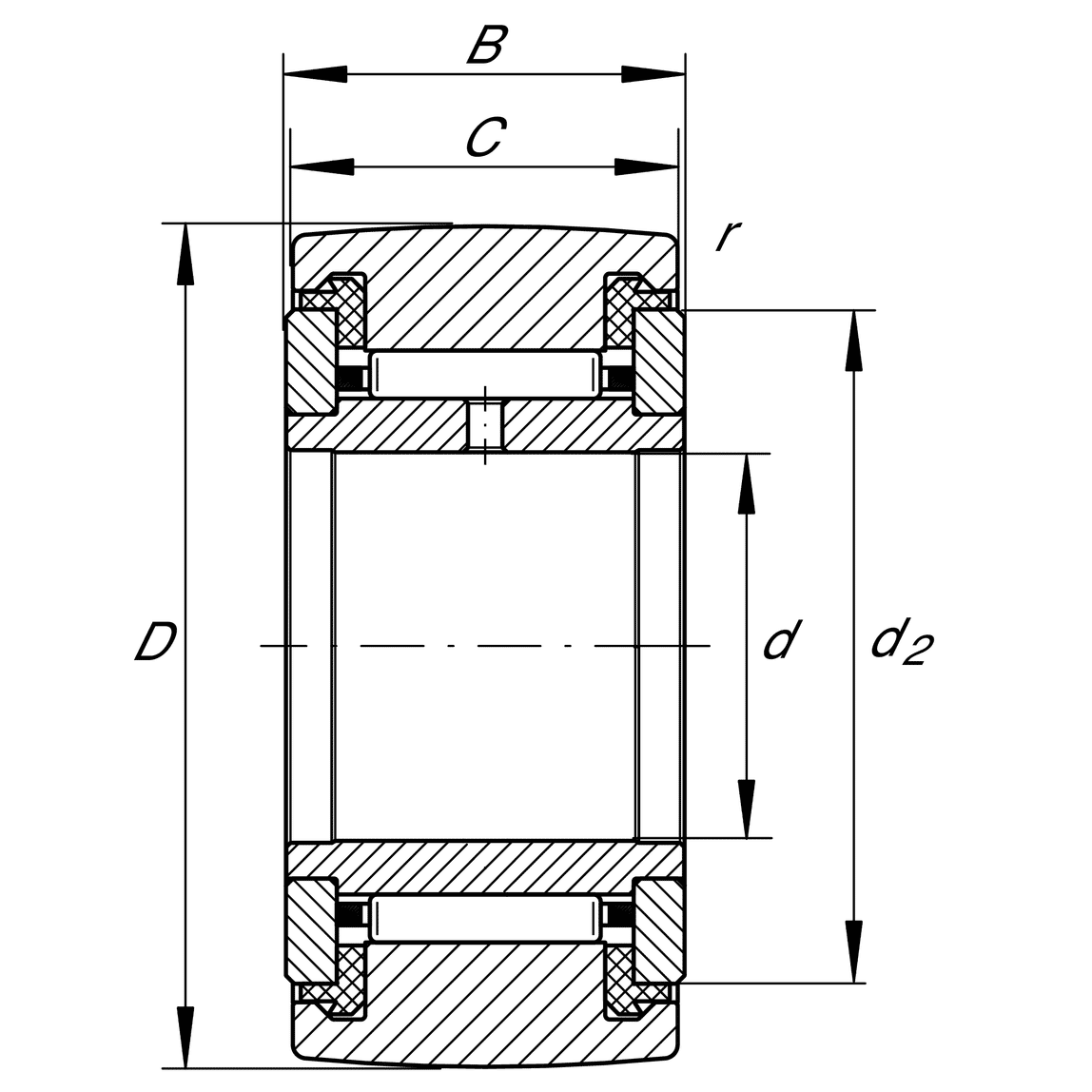

| Dimensions | ||
| C | 28 mm | Width, outer ring |
| d2 | 58 mm | Outside diameter of thrust washer |
| rmin | 1.1 mm | Minimum chamfer dimension |
INA NATR35-PP - Yoke type track rollers NATR..-PP, with axial guidance, axial plain washers on both sides.
NATR35-PP INA is single row units mounted on shafts. It comprise thick-walled outer ring with a profiled outside surface and needle roller and cage assemblies. NATR35-PP INA can support high radial loads as well as axial loads arising from slight misalignment and skewed running.
In NATR35-PP, axial guidance is provided directly by contact washers.
