INA KR16 bearings
INA, Stud type track rollers KR, with axial guidance, gap seals on both sides
- Stud diameter
- 6.000 mm
- Outside diameter
- 16.000 mm
- Total width
- 28.000 mm
- Width, ourter ring
- 11.000 mm
- Cr
- 3200 N
- C0r
- 3450 N
- Limiting speed
- 14000 r/min
- Net weight
- 18.35 g
- Measurement system
- Metric
- Number of rows
- 1
- Sealing
- Non-contact Shield on both sides
- Cage
- Steel sheet metal
- Shape of stud head
- Hex socket
- Shape of outer ring
- Crowned outer ring
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Lubricant in bearing
- Grease
- Relubrication feature
- Hole
In stock
Technical specification for INA KR16
| Part Number | KR16 | INA |
|---|---|---|
| Main Dimensions & Performance Data | ||
| D | 16 mm | Outside diameter |
| d1 | 6 mm | Fit diameter of roller stud |
| B | 28 mm | Width of the roller stud |
| Cr w | 3150 N | Effective dynamic load rating as track roller (radial) |
| C0r w | 3350 N | Effective static load rating as track roller (radial) |
| Cur w | 450 N | Fatigue limit load |
| Speed | 14000 1/min | with continuous operation and grease lubrication |
| mass | 19 g | |

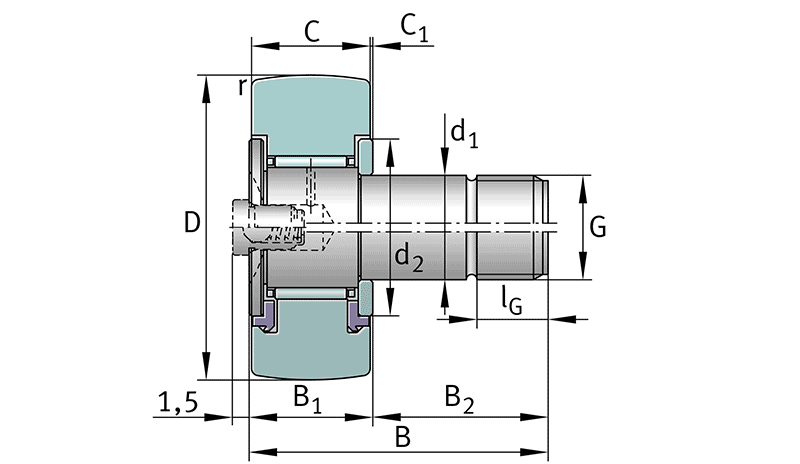

| Dimensions | ||
| B1 max | 12.2 mm | Maximum witdh of thrust washer |
| B2 | 16 mm | Bolt/stud length effectively |
| C | 11 mm | Width, outer ring |
| C1 | 0.6 mm | Protrusion outer ring to thrust washer |
| d2 | 12.5 mm | Stop diameter of thrust washer |
| G | M6(x1) | Thread |
| IG | 8 mm | Thread length |
| Crowning radius | 500 mm | Radius of outer ring outside profile |
| Additional information | ||
| MA | 3 Nm | Tightening torque nut |
| NIPA1 | Drive fit lubrication nipple | |
KR16, INA, Stud type track rollers, with axial guidance, gap seals on both sides, Outside diameter: 16mm, Stud diameter: 6mm, Total weight: 28mm.
- KR: KR cam follower
- 16: Outside diameter 16mm
