INA DKLFA1575-2RS bearings
Angular contact ball bearing units DKLFA..-2RS, double direction, for screw mounting, lip seals on both sides, with flattened flange
- Measurement system
- Metric
- Bore diameter
- 15.000 mm
- Outside diameter
- 45.000 mm
- Height
- 32.000 mm
- Ca
- 17900 N
- C0a
- 28000 N
- Limiting speed
- 5700 r/min
- Net weight
- 0.53 kg
- Number of rows
- 3
- Contact angle deg
- 60
- Sealing
- Contact seal on both sides
- Locating feature
- Screw mounting
- Cage
- Plastic
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Special
- Lubricant in bearing
- Grease
- Relubrication feature
- With
In stock
Technical specification for INA DKLFA1575-2RS
| Part Number | DKLFA1575-2RS | |
|---|---|---|
| Main Dimensions & Performance Data | ||
| d | 15 mm | Bore diameter |
| 0 mm | Bore diameter upper tolerance | |
| -0.01 mm | Bore diameter lower tolerance | |
| D | 45 mm | Outside diameter |
| 0 mm | Outside diameter upper tolerance | |
| -0.013 mm | Outside diameter lower tolerance | |
| B | 32 mm | Width |
| 0 mm | Width upper tolerance | |
| -0.25 mm | Width lower tolerance | |
| Ca | 37000 N | Basic dynamic load rating, axial HL |
| Ca | 17900 N | Basic dynamic load rating, axial |
| C0a | 83000 N | Basic static load rating, axial HL |
| C0a | 28000 N | Basic static load rating, axial |
| Cua | 2450 N | Fatigue load limit, axial HL |
| Cua | 1240 N | Fatigue load limit, axial |
| nG Grease | 5700 1/min | Limiting speed for grease lubrication |
| n∂ | 2600 1/min | Thermally safe operating speed |
| m | ≈ 0.53 kg | Weight |

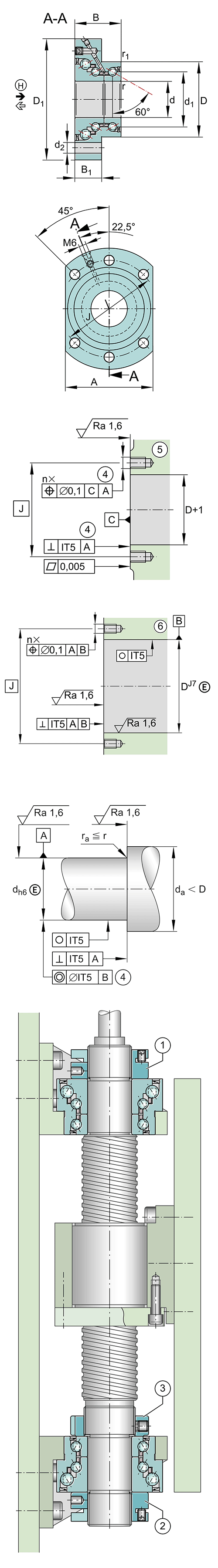

| Mounting dimensions | ||
| da min | 20 mm | Minimum diameter shaft shoulder |
| da max | 35 mm | Maximum diameter of shaft shoulder |
| M6 | Fixing scresw DIN EN ISO 4762 10.9 (not included) | |
| n | 4 | Number of screws |
| Dimensions | ||
| d1 | 28 mm | Rib diameter inner ring |
| D1 | 75 mm | Flange diameter |
| rmin | 0.3 mm | Minimum chamfer dimension |
| r1 min | 0.6 mm | Minimum chamfer dimension 1 |
| B1 | 18 mm | Thickness of flange |
| d2 | 6.8 mm | Fixing boring diameter |
| J | 58 mm | Pitch circle diameter (holes) |
| A | 55 mm | Flange width |
| Additional information | ||
| MRL | 0.35 Nm | Bearing frictional torque |
| CaL | 500 N/µm | Rigidity axial |
| CaL | 950 N/µm | Rigidity axial (HL) |
| CkL | 140 Nm/mrad | Tilting stiffness |
| 5 µm | Axial runout | |
| Mm | 0.278 kg*cm2 | Mass moment of inertia |
| MA | 10 Nm | Tightening torque nut |
INA DKLFA1575-2RS - Angular contact ball bearing units DKLFA..-2RS, double direction, for screw mounting, lip seals on both sides, with flattened flange.
DKLFA1575-2RS INA are precision bearings for screw drive bearing arrangements.They can support radial forces as well as axial forces in both directions.
