INA ZARN90180-TV bearings
ZARN90180-TV, Needle roller/axial cylindrical roller bearings ZARN, double direction
- Bore diameter
- 90.000 mm
- Outside diameter
- 180.000 mm
- Total width
- 110.000 mm
- Cr
- 98000 N
- C0r
- 210000 N
- Ca
- 325000 N
- C0a
- 1030000 N
- Limiting speed
- 1800 r/min
- Net weight
- 12.356 kg
- Measurement system
- Metric
- Sealing
- Without
- Cage
- Plastic
- Bearing material
- Steel
- Rolling material
- Steel
- Lubricant in bearing
- Without
- Relubrication feature
- With
In stock
Technical specification for INA ZARN90180-TV

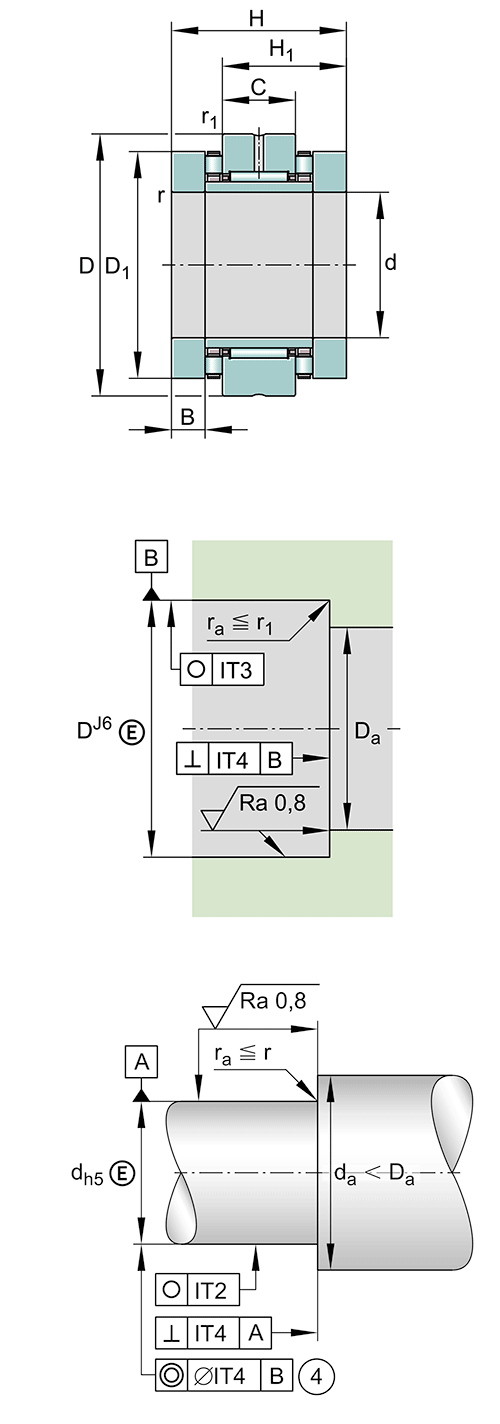

| Part Number | ZARN90180-TV | |
|---|---|---|
| Main Dimensions & Performance Data | ||
| d | 90 mm | Bore diameter |
| D | 180 mm | Outside diameter |
| H | 110 mm | Hight |
| Ca | 325000 N | Basic dynamic load rating, axial |
| C0a | 1030000 N | Basic static load rating, axial |
| Cr | 98000 N | Basic dynamic load rating, radial |
| C0r | 210000 N | Basic static load rating, radial |
| Cua | 95000 N | Fatigue load limit, axial |
| Cur | 29000 N | Fatigue load limit, radial |
| nG Oil | 1800 1/min | Limiting speed for oil lubrication |
| nG Grease | 700 1/min | Limiting speed for grease lubrication |
| MRL | 10.5 Nm | Bearing friction torque |
| m | ≈ 12.356 kg | Weight |
| Mounting dimensions | ||
| Da max | 161 mm | Maximum diameter of housing shoulder |
| da min | 130 mm | Minimum diameter shaft shoulder |
| Dimensions | ||
| H1 | 72.5 mm | Height outer ring over wave washer |
| C | 35 mm | Width, outer ring |
| D1 | 160 mm | Rip diameter shaft washer |
| B | 22.5 mm | Width, inner ring |
| rmin | 0.3 mm | Minimum chamfer dimension |
| r1 min | 1 mm | Minimum chamfer dimension |
| Additional information | ||
| CaL | 7700 N/µm | Rigidity axial |
| CkL | 14500 Nm/mrad | Tilting stiffness |
| Mm | 312 kg*cm2 | Mass moment of inertia |
| 2µm | Axial runout | |
| radial | ZMA90/155 | Recommended INA precision locknut for radial locking (not included) |
| axial | AM90 | Recommended INA precision locknut for axial locking (not included) |
| MA | 960 Nm | Tightening torque nut |
| 100669 N | Preload force axial | |
INA ZARN90180-TV - Needle roller/axial cylindrical roller bearings ZARN, double direction.
ZARN90180-TV INA axial/radial roller bearings for screw drives are double direction, high precision axial cylindrical roller bearings with a radial bearing component. The inner ring, outer ring and cylindrical roller and cage assemblies are matched to each other such that the bearing is axially clearance-free after preloading by means of an INA precision locknut.
