INA ZARN2572-L-TV bearings
ZARN2572-L-TV, Needle roller/axial cylindrical roller bearings ZARN..-L, double direction, long shaft locating washer
- Bore diameter
- 25.000 mm
- Outside diameter
- 72.000 mm
- Total width
- 75.000 mm
- Cr
- 24300 N
- C0r
- 41500 N
- Ca
- 80000 N
- C0a
- 199000 N
- Limiting speed
- 4900 r/min
- Net weight
- 1.315 kg
- Measurement system
- Metric
- Sealing
- Without
- Cage
- Plastic
- Bearing material
- Steel
- Rolling material
- Steel
- Lubricant in bearing
- Without
- Relubrication feature
- With
In stock
Technical specification for INA ZARN2572-L-TV
| Part Number | ZARN2572-L-TV | |
|---|---|---|
| Main Dimensions & Performance Data | ||
| d | 25 mm | Bore diameter |
| D | 72 mm | Outside diameter |
| H | 75 mm | Hight |
| Ca | 80000 N | Basic dynamic load rating, axial |
| C0a | 199000 N | Basic static load rating, axial |
| Cr | 24300 N | Basic dynamic load rating, radial |
| C0r | 41500 N | Basic static load rating, radial |
| Cua | 18600 N | Fatigue load limit, axial |
| Cur | 6000 N | Fatigue load limit, radial |
| nG Oil | 4900 1/min | Limiting speed for oil lubrication |
| nG Grease | 1400 1/min | Limiting speed for grease lubrication |
| MRL | 1.6 Nm | Bearing friction torque |
| m | ≈ 1.315 kg | Weight |

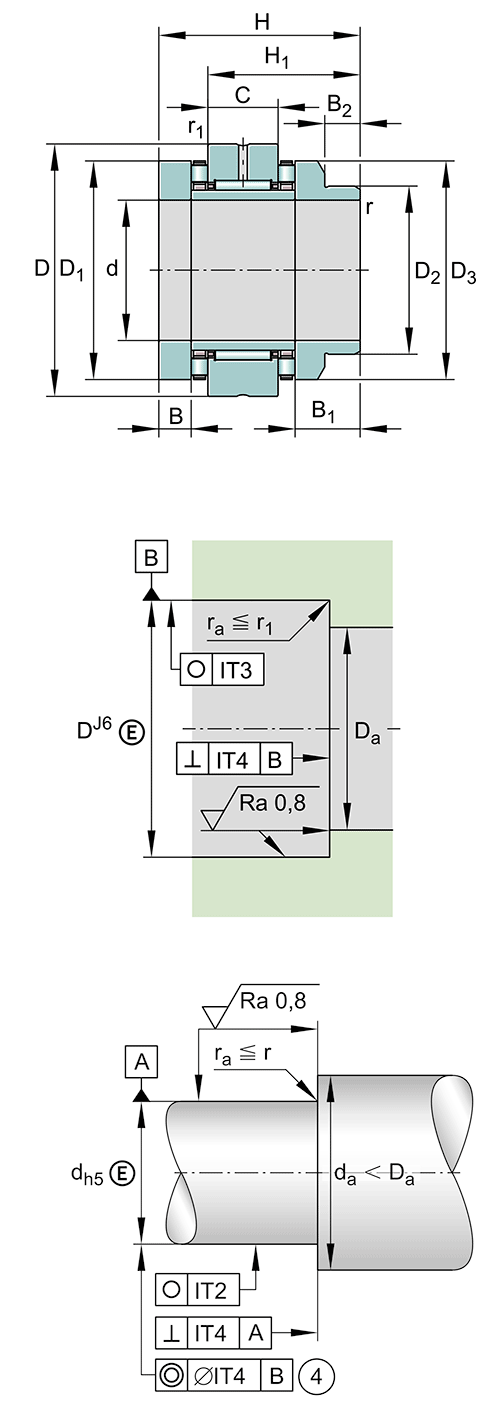

| Mounting dimensions | ||
| Da max | 63 mm | Maximum diameter of housing shoulder |
| da min | 45 mm | Minimum diameter shaft shoulder |
| Dimensions | ||
| H1 | 55 mm | Height outer ring over wave washer |
| C | 20 mm | Width, outer ring |
| D1 | 62 mm | Rip diameter shaft washer |
| D2 | 48 mm | Heeldiameter wave washer long |
| D3 | 60 mm | Outside diameter wave washer long |
| B | 12.5 mm | Width, inner ring |
| B1 | 27.5 mm | Width wave washer long |
| B2 | 13 mm | Width heel wave washer long |
| rmin | 0.3 mm | Minimum chamfer dimension |
| r1 min | 0.6 mm | Minimum chamfer dimension |
| Additional information | ||
| CaL | 3000 N/µm | Rigidity axial |
| CkL | 800 Nm/mrad | Tilting stiffness |
| Mm | 4.51 kg*cm2 | Mass moment of inertia |
| 1µm | Axial runout | |
| radial | ZMA25/58 | Recommended INA precision locknut for radial locking (not included) |
| axial | AM25 | Recommended INA precision locknut for axial locking (not included) |
| MA | 55 Nm | Tightening torque nut |
| 20790 N | Preload force axial | |
| 48X62X8 | Rotary shaft seal to DIN 3760 (not included) | |
INA ZARN2572-L-TV - Needle roller/axial cylindrical roller bearings ZARN..-L, double direction, long shaft locating washer.
ZARN2572-L-TV INA axial/radial roller bearings for screw drives are double direction, high precision axial cylindrical roller bearings with a radial bearing component. The inner ring, outer ring and cylindrical roller and cage assemblies are matched to each other such that the bearing is axially clearance-free after preloading by means of an INA precision locknut.
ZARN2572-L-TV INA have a stepped shaft locating washer extended on one side.
