INA ZARF3080-L-TV bearings
ZARF3080-L-TV, Needle roller/axial cylindrical roller bearings ZARF..-L, double direction, for screw mounting, long shaft locating washer
- Bore diameter
- 30.000 mm
- Outside diameter
- 80.000 mm
- Total width
- 65.000 mm
- Cr
- 24300 N
- C0r
- 41500 N
- Ca
- 39000 N
- C0a
- 101000 N
- Limiting speed
- 5500 r/min
- Net weight
- 0.815 kg
- Measurement system
- Metric
- Sealing
- Without
- Cage
- Plastic
- Bearing material
- Steel
- Rolling material
- Steel
- Lubricant in bearing
- Without
- Relubrication feature
- With
In stock

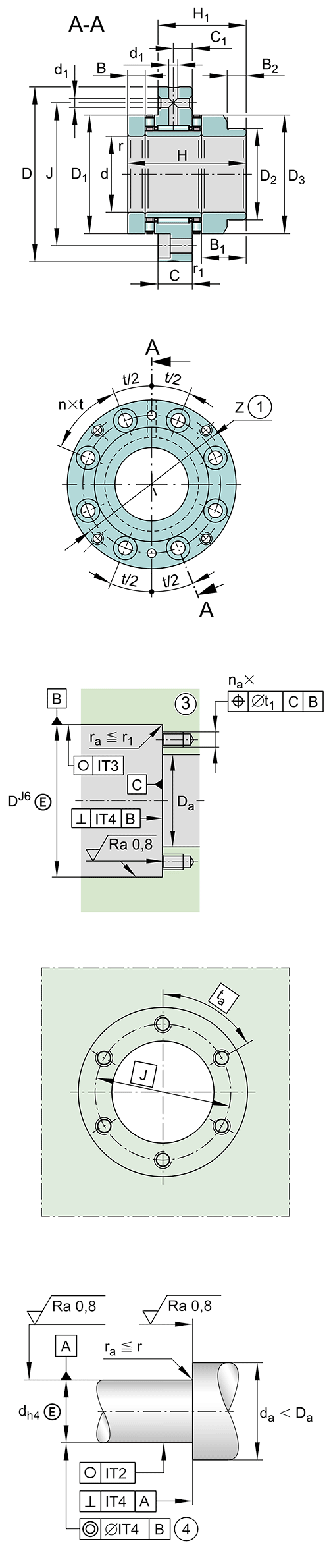

Technical specification for INA ZARF3080-L-TV
| Part Number | ZARF3080-L-TV | |
|---|---|---|
| Main Dimensions & Performance Data | ||
| d | 30 mm | Bore diameter |
| D | 80 mm | Outside diameter |
| H | 65 mm | Hight |
| Ca | 39000 N | Basic dynamic load rating, axial |
| C0a | 101000 N | Basic static load rating, axial |
| Cr | 24300 N | Basic dynamic load rating, radial |
| C0r | 41500 N | Basic static load rating, radial |
| Cua | 8500 N | Fatigue load limit, axial |
| Cur | 6000 N | Fatigue load limit, radial |
| nG Oil | 5500 1/min | Limiting speed for oil lubrication |
| nG Grease | 1800 1/min | Limiting speed for grease lubrication |
| MRL | 0.65 Nm | Bearing friction torque |
| m | ≈ 0.815 kg | Weight |
| Mounting dimensions | ||
| Da max | 53 mm | Maximum diameter of housing shoulder |
| da min | 38 mm | Minimum diameter shaft shoulder |
| t1 | 0.1 mm | Position bore in the housing |
| Dimensions | ||
| H1 | 48 mm | Height outer ring over wave washer |
| C | 18 mm | Width, outer ring |
| C1 | 10 mm | Distance to lubrication hole |
| D1 | 52 mm | Rip diameter shaft washer |
| D2 | 40 mm | Heeldiameter wave washer long |
| D3 | 50 mm | Outside diameter wave washer long |
| B | 10 mm | Width, inner ring |
| B1 | 25 mm | Width wave washer long |
| B2 | 13 mm | Width heel wave washer long |
| rmin | 0.3 mm | Minimum chamfer dimension |
| r1 min | 0.6 mm | Minimum chamfer dimension |
| d1 | 3.2 mm | Diameter lubrication hole |
| J | 63 mm | Pitch circle diameter (holes) |
| n | 12 | Number of screwing holes |
| n x t | 30° | Split |
| Additional information | ||
| CaL | 2200 N/µm | Rigidity axial |
| CkL | 520 Nm/mrad | Tilting stiffness |
| Mm | 1.7 kg*cm2 | Mass moment of inertia |
| 1µm | Axial runout | |
| radial | ZMA30/52 | Recommended INA precision locknut for radial locking (not included) |
| axial | AM30 | Locknut 2 |
| MA | 32 Nm | Tightening torque nut |
| 10662 N | Preload force axial | |
| 40X52X7 | Sealing ring | |
| M6 | Screw size | |
| na | 12 | Number of screws |
| na x ta | 30° | Division (screwing holes) |
INA ZARF3080-L-TV - Needle roller/axial cylindrical roller bearings ZARF..-L, double direction, for screw mounting, long shaft locating washer.
ZARF3080-L-TV INA axial/radial roller bearings for screw drives are double direction, high precision axial cylindrical roller bearings with a radial bearing component. The inner ring, outer ring and cylindrical roller and cage assemblies are matched to each other such that the bearing is axially clearance-free after preloading by means of an INA precision locknut.
ZARF3080-L-TV INA is with fixing holes in the outer ring, which is screw mounted directly on the adjacent construction. ZARF3080-L-TV have a stepped shaft locating washer extended on one side.
