INA NKI5/12-TV-XL bearings
Needle roller bearings NKI, light series
- Measurement system
- Metric
- Bore diameter
- 5.000 mm
- Outside diameter
- 15.000 mm
- Width
- 12.000 mm
- Cr
- 4450 N
- C0r
- 4100 N
- Limiting speed
- 32500 r/min
- Net weight
- 11.59 g
- Number of rows
- 1
- Sealing
- Without
- Locating feature
- Without
- Cage
- Plastic
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- None
- Relubrication feature
- With
- Coating
- Without
In stock
Technical specification for INA NKI5/12-TV-XL
| Part Number | NKI5/12-TV-XL | |
|---|---|---|
| Brand | INA | |
| Description | Needle roller bearings NKI, light series | |
| Main Dimensions & Performance Data | ||
| d | 5 mm | Bore diameter |
| D | 15 mm | Outside diameter |
| B | 12 mm | Width |
| Cr | 4450 N | Basic dynamic load rating, radial |
| C0r | 4100 N | Basic static load rating, radial |
| Cur | 700 N | Fatigue load limit, radial |
| nG | 32500 1/min | Limiting speed |
| nr | 32500 1/min | Reference speed |
| m | 11.59 g | Weight |

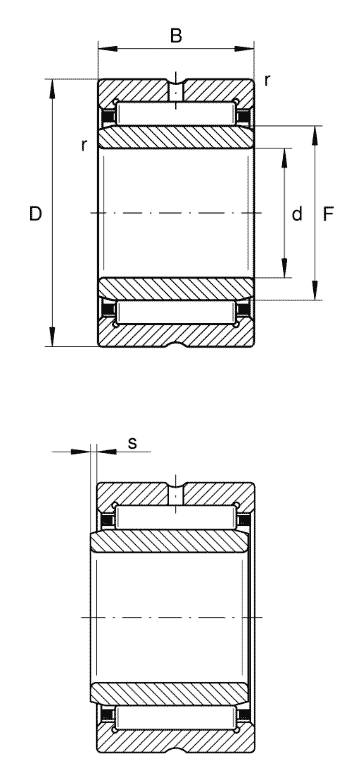

| Dimensions | ||
| F | 8 mm | Raceway diameter inner ring |
| rmin | 0.3 mm | Minimum chamfer dimension |
| s | 1.5 mm | Axial displacement |
INA NKI5/12-TV-XL Bearing Supplier – Light Series Needle Roller Bearing
INA NKI5/12-TV-XL is a high-quality Needle Roller Bearing from the INA NKI Light Series, designed to provide excellent radial load carrying capacity while maintaining a compact and lightweight bearing arrangement. Featuring an inner ring and optimized raceway geometry, this bearing is ideal for applications where high performance and space efficiency are required.
Specifications
- Part Number: NKI5/12-TV-XL
- Brand: INA
- Series: NKI — Light Series
- Bearing type: Needle Roller Bearing
- Bore Diameter (ID): 5 mm
- Outside Diameter (OD): 15 mm
- Width (B): 12 mm
- Axial Displacement: 1.5 mm
Key Features of INA NKI5/12-TV-XL
High Radial Load Capacity
The needle roller design enables the bearing to carry high radial loads while maintaining a relatively small cross-sectional height.
Compact Light Series Design
As part of the NKI Light Series, the bearing offers an excellent balance between load capacity and space-saving installation requirements.
Axial Displacement Capability
The INA NKI5/12-TV-XL allows axial displacement of up to 1.5 mm. This feature helps compensate for thermal expansion and mounting tolerances, improving system reliability.
Smooth and Efficient Operation
Optimized internal geometry reduces friction and promotes smooth running performance under demanding operating conditions.
Long Service Life
Manufactured to INA's stringent quality standards, the bearing delivers excellent durability, reduced wear, and dependable long-term performance.
Frequently asked questions
What does "NKI" mean in INA NKI5/12-TV-XL?
NKI designates a needle roller bearing with a machined inner ring. Unlike NK bearings (no inner ring), NKI bearings can be mounted directly on an unhardened shaft, making installation easier and reducing shaft preparation costs.
What does the "XL" suffix indicate?
The XL suffix is INA / Schaeffler's designation, indicating the bearings are characterised by a very high load carrying capacity and long rating life.
