INA NA4900-2RSR-XL bearings
Needle roller bearings NA49..-2RSR, dimension series 49, lip seals on both sides

Inquiry for price
INA needle roller bearing, lip seals on both sides
Measurement system
Metric
Bore diameter
10.000 mm
Outside diameter
22.000 mm
Width
14.000 mm
Width, ourter ring
13.000 mm
Cr
7700 N
C0r
6900 N
Limiting speed
14800 r/min
Net weight
0.024 kg
Number of rows
1
Sealing
Contact seal on both sides
Locating feature
Without
Cage
Steel sheet metal
Bearing material
Steel
Rolling material
Steel
Tolerance class
Normal (PN)
Internal clearance
CN
Lubricant in bearing
None
Relubrication feature
None
Coating
Without

In stock

Technical specification for INA NA4900-2RSR-XL

NA4900-2RSR-XL INA
Part NumberNA4900-2RSR-XL
Brand INA
DescriptionNeedle roller bearings NA49..-2RSR, dimension series 49, lip seals on both sides
Sealing 2RSR Contact seals on both sides
Main Dimensions & Performance Data
d 10 mm Bore diameter
D 22 mm Outside diameter
B 14 mm Width
Cr 7700 N Basic dynamic load rating, radial
C0r 6900 N Basic static load rating, radial
Cur 1390 N Fatigue load limit, radial
nG 14800 1/min Limiting speed for grease lubrication
m 0.024 kgWeight

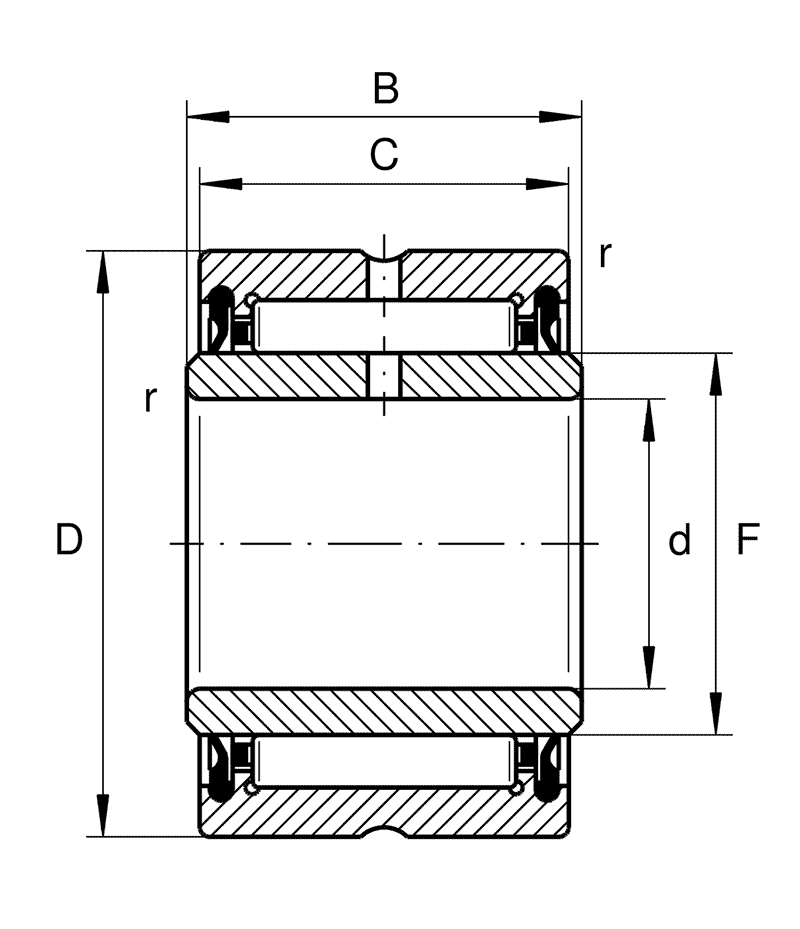

Dimensions
rmin 0.3 mm Minimum chamfer dimension
F 14 mm Raceway diameter inner ring
C 13 mm Width, outer ring
INA needle roller bearing, lip seals on both sides

INA NA4900-2RSR-XL Bearing Supplier - Competitive Price and Worldwide Shipping

INA NA4900-2RSR-XL is a high-quality Needle Roller Bearing from the series, designed to provide high radial load carrying capacity while maintaining a compact bearing arrangement. Featuring a single-row design with an inner ring and an outer ring with two integral flanges (2 ribs), the INA NA4900-2RSR-XL bearing offers reliable performance and long service life in a wide range of industrial applications.

The series is well known for its robust construction, optimized internal geometry, and excellent load distribution, making it an ideal choice for machinery operating under heavy radial loads and limited installation space.

Product Specifications

  • Brand: INA
  • Model: NA4900-2RSR-XL
  • Bearing Type: Needle Roller Bearing
  • Series:
  • Design: Single Row
  • Inner Ring: With Inner Ring
  • Outer Ring: With 2 Integral Flanges (2 Ribs)
  • Bore Diameter (ID): 10 mm
  • Outside Diameter (OD): 22 mm
  • Width (B): 14 mm

Key Features of INA NA4900-2RSR-XL

High Radial Load Capacity

The needle roller design allows the INA NA4900-2RSR-XL bearing to support high radial loads while maintaining a compact cross-section.

Compact and Space-Saving Design

Compared with conventional rolling bearings, the INA NA4900-2RSR-XL provides excellent load capacity within a smaller installation space.

With Inner Ring

The integrated inner ring enables easy installation and provides an optimized raceway surface for smooth operation.

Outer Ring with Two Integral Flanges

The outer ring features two integral flanges that provide reliable axial guidance of the needle roller and cage assembly.

Request a Quote for INA NA4900-2RSR-XL

We supply INA NA4900-2RSR-XL Needle Roller Bearings at competitive prices with fast delivery and worldwide shipping.

Looking for the latest INA NA4900-2RSR-XL price, stock availability, lead time, or shipping cost? Contact Coolen today for a quick quotation. We welcome inquiries from distributors, OEM manufacturers, maintenance companies, and industrial buyers around the world.
