INA SL192309-XL bearings
SL192309-XL, INA full complement cylindrical roller bearings
- Measurement system
- Metric
- Bore diameter
- 45.000 mm
- Outside diameter
- 100.000 mm
- Width
- 36.000 mm
- Cr
- 181000 N
- C0r
- 164000 N
- Limiting speed
- 4600 r/min
- Net weight
- 1.39 kg
- Number of rows
- 1
- Sealing
- Without
- Locating feature
- Without
- Cage
- Without
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- None
- Relubrication feature
- Without
In stock
Technical specification for INA SL192309-XL

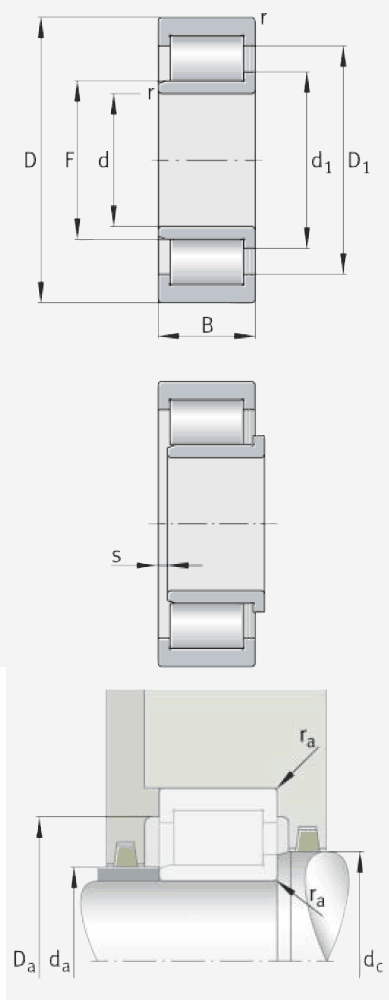

| Part Number | SL192309-XL | |
|---|---|---|
| Main Dimensions & Performance Data | ||
| d | 45 mm | Bore diameter |
| D | 100 mm | Outside diameter |
| B | 36 mm | Width |
| Cr | 181000 N | Basic dynamic load rating, radial |
| C0r | 164000 N | Basic static load rating, radial |
| Cur | 31000 N | Fatigue load limit, radial |
| nG | 4600 1/min | Limiting speed |
| n∂r | 3000 1/min | Reference speed |
| m | 1.39 kg | Weight |
| Dimensions | ||
| D1 | 80.3 mm | Shoulder diameter outer ring |
| d1 | 62.5 mm | Shoulder diameter inner ring |
| F | 56.1 mm | Raceway diameter inner ring |
| rmin | 1.5 mm | Minimum chamfer dimension |
| s | 3 mm | Axial displacement |
| Mounting dimensions | ||
| Da max | 80 mm | Maximum diameter of housing shoulder |
| da min | 56 mm | Minimum diameter shaft shoulder |
| dc min | 62.5 mm | Minimum shaft shoulder |
| ra max | 1.5 mm | Maximum fillet radius |
INA SL192309-XL cylindrical roller bearings have two rigid ribs on the outer ring and a self-retaining rolling element set, while the inner ring has only one rigid rib. As a result, the inner ring of SL192309-XL can be removed from the bearing. Which gives easier mounting of the INA cylindrical roller bearings
SL192309-XL INA are used as semi-locating bearings. They can guide the shaft axially in one direction and permit axial displacements in the bearing between the shaft and housing in one direction. The maximum axial displacement of SL192309-XL is 3 mm.
