INA SL024920 bearings
SL024920, full complement roller bearing, two row
- Measurement system
- Metric
- Bore diameter
- 100.000 mm
- Outside diameter
- 140.000 mm
- Width
- 40.000 mm
- Cr
- 191000 N
- C0r
- 370000 N
- Limiting speed
- 2700 r/min
- Net weight
- 1.898 kg
- Number of rows
- 2
- Sealing
- Without
- Locating feature
- Without
- Cage
- Without
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- None
- Relubrication feature
- With
In stock
Technical specification for INA SL024920
| Part Number | SL024920 | |
|---|---|---|
| Bearing designation DIN5412 | NNCL4920V | |
| Main Dimensions & Performance Data | ||
| d | 100 mm | Bore diameter |
| D | 140 mm | Outside diameter |
| B | 40 mm | Width |
| Cr | 191000 N | Basic dynamic load rating, radial |
| C0r | 370000 N | Basic static load rating, radial |
| Cur | 48500 N | Fatigue load limit, radial |
| nG | 2700 1/min | Limiting speed |
| n∂r | 1720 1/min | Reference speed |
| m | 1.898 kg | Weight |

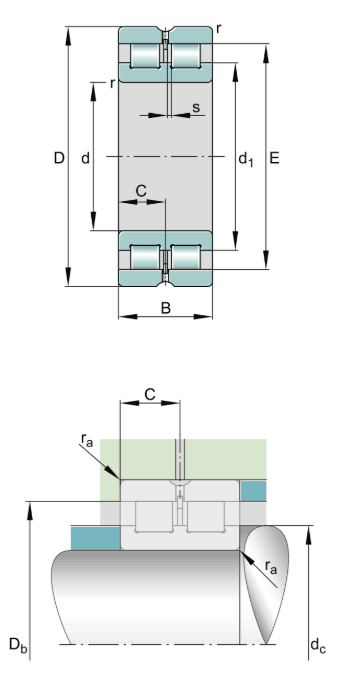

| Dimensions | ||
| rmin | 1.1 mm | Minimum chamfer dimension |
| s | 2 mm | Axial displacement |
| C | 20 mm | Distance to lubrication hole |
| d1 max | 116.4 mm | Maximum rib diameter inner ring |
| E | 129.6 mm | Raceway diameter outer ring |
| Mounting dimensions | ||
| da min | 116.4 mm | Minimum diameter shaft shoulder |
| dc min | 116.5 mm | Minimum shaft shoulder |
| De min | 129.5 mm | Maximum diameter of housing shoulder |
| ra max | 1.1 mm | Maximum recess radius |
INA SL024920 cylindrical roller bearings have 3 ribs on the inner ring and 0 rib on the outer ring. As a result, axial displacements of the shaft relative to the housing can be compensated within certain limits. During rotational motion,length compensation occurs without constraint in the bearing between the rollers and the raceway without ribs and is therefore practically free from friction. The maximum axial displacement of SL024920 is 2 mm.
INA SL024920 bearings are used as non-locating bearings. They cannot guide the shaft axially in either direction.
