INA SL014918-A-C3 bearings
SL014918-A-C3, full complement roller bearing, double row
- Measurement system
- Metric
- Bore diameter
- 90.000 mm
- Outside diameter
- 125.000 mm
- Width
- 35.000 mm
- Cr
- 153000 N
- C0r
- 290000 N
- Limiting speed
- 3050 r/min
- Net weight
- 1.311 kg
- Number of rows
- 2
- Sealing
- Without
- Locating feature
- Without
- Cage
- Without
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- C3
- Lubricant in bearing
- None
- Relubrication feature
- With
In stock
Technical specification for INA SL014918-A-C3
| Part Number | SL014918-A-C3 | |
|---|---|---|
| Bearing designation DIN5412 | NNC4918V | |
| Main Dimensions & Performance Data | ||
| d | 90 mm | Bore diameter |
| D | 125 mm | Outside diameter |
| B | 35 mm | Width |
| Cr | 153000 N | Basic dynamic load rating, radial |
| C0r | 290000 N | Basic static load rating, radial |
| Cur | 39500 N | Fatigue load limit, radial |
| nG | 3050 1/min | Limiting speed |
| n∂r | 1870 1/min | Reference speed |
| m | 1.311 kg | Weight |

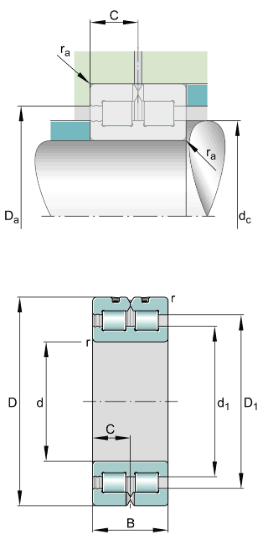

| Dimensions | ||
| rmin | 1.1 mm | Minimum chamfer dimension |
| d1 | 103.9 mm | Maximum rib diameter inner ring |
| D1 min | 110.7 mm | Minimum rib diameter outer ring |
| C | 17.5 mm | Distance to lubrication hole |
| Mounting dimensions | ||
| da min | 103.9 mm | Minimum diameter shaft shoulder |
| dc min | 103.5 mm | Minimum shaft shoulder |
| Da max | 111 mm | Maximum diameter of housing shoulder |
| ra max | 1.1 mm | Maximum recess radius |
INA SL014918-A-C3 double row cylindrical roller bearings have 3 rigid ribs on the inner ring and 2 rigid ribs on the outer ring. Axial displacements between the shaft and housing are not possible. INA SL014918-A-C3 bearings are used as locating bearings, that they can guide the shaft axially in both directions.
