INA NX7-TV-XL bearings
INA needle roller/axial ball bearings NX, single direction axial component, for oil lubrication

Inquiry for price
INA needle roller/axial ball bearings NX
Bore diameter
7.000 mm
Outside diameter
14.000 mm
Total width
18.000 mm
Cr
3250 N
C0r
2650 N
Ca
3150 N
C0a
4300 N
Limiting speed
15000 r/min
Net weight
0.012 kg
Measurement system
Metric
Bearing material
Steel
Rolling material
Steel
Tolerance class
Normal (PN)
Lubricant in bearing
None
Relubrication feature
With

In stock

Technical specification for INA NX7-TV-XL

NX7-TV-XL INA
Part NumberNX7-TV-XL
DescriptionNeedle roller/axial ball bearings NX, single direction axial component, for oil lubrication
Cage With cage Radial Part
Without cage Thrust Part
Main Dimensions & Performance Data
Fw 7 mm Bore Diameter
D 14 mm Outside diameter
C 18 mm Heigth
Cr 3250 N Basic dynamic load rating, radial
C0r 2650 N Basic static load rating, radial
Ca 3150 N Basic dynamic load rating, axial
C0a 4300 N Basic static load rating, axial
Cur 420 N Fatigue load limit, radial
Cua 195 N Fatigue load limit, axial
nG 15000 1/min Limiting speed
m 0.012 kg Weight

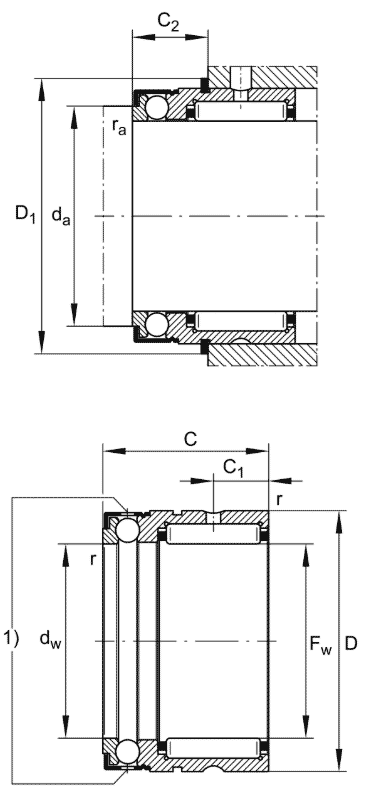

Mounting Dimensions of NX7-TV-XL
da 9.6 mm Mounting dimension shaft shoulder
ra max 0.3 mm Maximum recess radius
D1 16.5 mm Connection diameter snap ring
C2 10 mm Connection width with snap ring
Dimensions for NX7-TV-XL
C1 4.7 mm Distance to lubrication hole
dw 7 mm Bore diameter of shaft washer
rmin 0.3 mm Minimum chamfer dimension
Additional information
  WR14, SW14 Snap ring
INA needle roller/axial ball bearings NX

INA NX7-TV-XL Needle Roller / Axial Ball Bearing – Single Direction Axial Component for Oil Lubrication

INA NX7-TV-XL is a Needle Roller / Axial Ball Bearing designed for applications requiring the accommodation of both radial and axial loads. Featuring a single direction axial component, this bearing offers a compact design, high load-carrying capacity, and reliable operating performance in demanding industrial environments.

The NX7-TV-XL bearing is specifically designed for oil lubrication, ensuring efficient heat dissipation, reduced friction, and extended service life in high-speed and continuous-duty applications.

Product Specifications:

  • Brand: INA
  • Model: NX7-TV-XL
  • Bearing Type: Needle Roller / Axial Ball Bearing
  • Design: Single Direction Axial Component
  • Lubrication: Oil Lubrication
  • Bore Diameter (ID): 7 mm
  • Outside Diameter (OD): 14 mm
  • Height (C): 18 mm

Key Features:

  • Supports combined radial and axial loads
  • Compact and space-saving design
  • High load carrying capacity
  • Optimized for oil-lubricated systems
  • Reliable performance and long service life
  • Suitable for industrial machinery and transmission applications

INA NX7-TV-XL bearings are widely used in gearboxes, machine tools, conveyors, industrial drives, and other equipment where compact bearing arrangements and dependable performance are essential.

We supply INA NX7-TV-XL bearings at competitive prices with worldwide shipping and professional customer support.

Looking for INA NX7-TV-XL bearing price, stock availability, or delivery time? Contact us today for a fast quotation. We welcome inquiries from distributors, OEM manufacturers, maintenance companies, and industrial users worldwide.
