INA NKXR15-Z-XL bearings
INA needle roller/axial cylindrical roller bearings NKXR..-Z, axial component, single direction, with end cap

Inquiry for price
INA NKXR15-Z-XL
Bore diameter
15.000 mm
Outside diameter
24.000 mm
Total width
23.000 mm
Cr
12100 N
C0r
12700 N
Ca
14400 N
C0a
28500 N
Limiting speed
13000 r/min
Net weight
44.94 g
Measurement system
Metric
Bearing material
Steel
Rolling material
Steel
Tolerance class
Normal (PN)
Lubricant in bearing
Grease

In stock

Technical specification for INA NKXR15-Z-XL

NKXR15-Z-XL INA
Part NumberNKXR15-Z-XL
DescriptionNeedle roller/axial cylindrical roller bearings NKXR..-Z, axial component, single direction, to DIN 5429, with end cap, for grease lubrication
Sealing Z Bearing with end cap
Tolerance class PN Normal (PN)
Main Dimensions & Performance Data
Fw 15 mm Bore Diameter
D 24 mm Outside diameter
C 23 mm Heigth
Cr 12100 N Basic dynamic load rating, radial
C0r 12700 N Basic static load rating, radial
Ca 14400 N Basic dynamic load rating, axial
C0a 28500 N Basic static load rating, axial
Cur 2360 N Fatigue load limit, radial
Cua 4050 N Fatigue load limit, axial
nG 13000 1/min Limiting speed
nr 6500 1/min Reference speed
m 44.94 g Weight

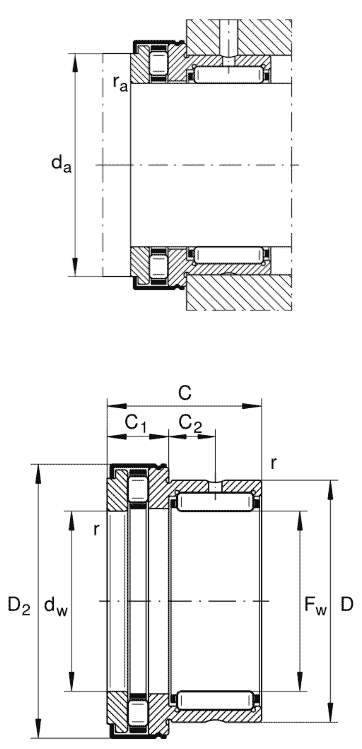

Mounting Dimensions of NKXR15-Z-XL
da 23.7 mm Mounting dimension shaft shoulder
ra max 0.3 mm Maximum recess radius
Dimensions for NKXR15-Z-XL
D2 max 29.2 mm Maximum outerside diameter flange
C1 9 mm Width of the axial brearing component
C2 6.5 mm Distance to lubrication hole
dw 15 mm Bore diameter of shaft washer
rmin 0.3 mm Minimum chamfer dimension
Additional information
  IR12X15X16-XL Suitable inner rings IR
INA needle roller/axial cylindrical roller bearings NKXR..-Z

INA NKXR15-Z-XL Needle Roller / Axial Cylindrical Roller Bearing – Single Direction, With End Cap.

INA NKXR15-Z-XL is a precision Needle Roller / Axial Cylindrical Roller Bearing designed for applications requiring combined radial and axial load support. Featuring a single direction design without end cap, this bearing provides reliable performance, high load capacity, and smooth operation in demanding industrial environments.

Product Details:

  • Brand: INA
  • Model: NKXR15-Z-XL
  • Bearing Type: Needle Roller / Axial Cylindrical Roller Bearing
  • Design: Single Direction, With End Cap
  • Inner Diameter (ID): 15 mm
  • Outer Diameter (OD): 24 mm
  • Height (B): 23 mm

We supply genuine INA NKXR15-Z-XL bearings with competitive prices, worldwide shipping, and professional customer support.

Looking for INA NKXR15-Z-XL bearing price, stock availability, or delivery time? Contact us today for a fast quotation and professional service. We welcome your inquiry and look forward to offering you the best quotation.
