INA XU080264 bearings
INA Slewing ring, Crossed roller bearing, without gear teeth

Inquiry for price
INA XU080264
Bore diameter
215.900 mm
Outside diameter
311.000 mm
Total width
25.400 mm
Cr
56000 N
C0r
73000 N
Ca
79000 N
C0a
148000 N
Net weight
6.7 kg
Measurement system
Metric
Sealing
Seal on both sides
Cage
Plastic spacers
Bearing material
Steel
Rolling material
Steel
Lubricant in bearing
Grease
Relubrication feature
With

In stock

Technical specification for INA XU080264

XU080264 INA
Part NumberXU080264
DescriptionSlewing ring, Crossed roller bearing, without gear teeth
Main Dimensions & Performance Data
di215.9 mmBore Diameter
 0 mmBore diameter upper tolerance
 -0.026 mmBore diameter lower tolerance
Da311 mmOutside Diameter
 0 mmOutside diameter upper tolerance
 -0.052 mmOutside diameter lower tolerance
H25.4 mmHeigth
m6.7 kgWeight

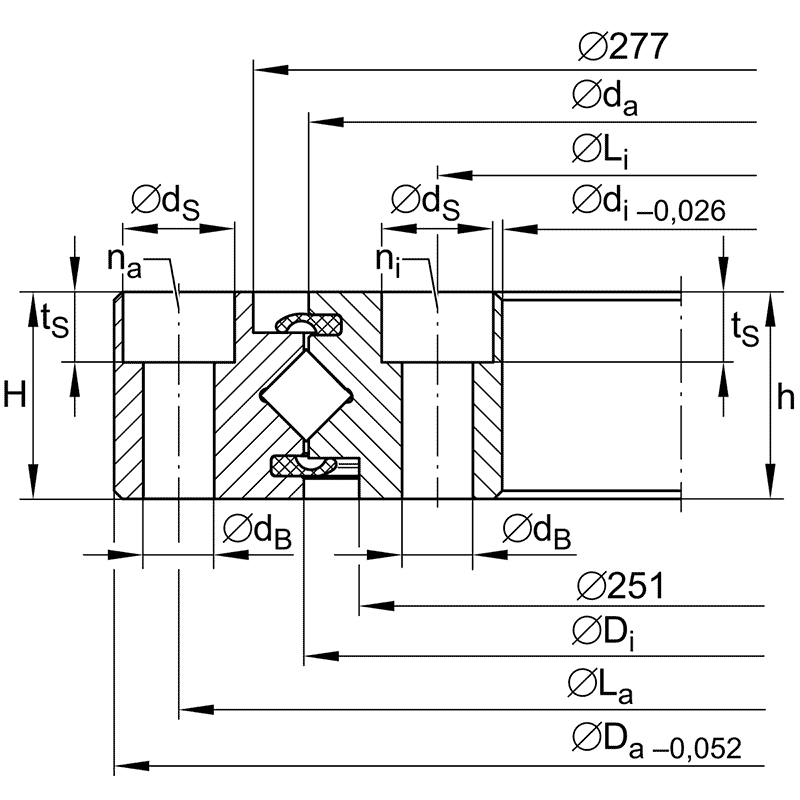

Dimensions of XU080264
Di264.6 mmInner diameter outer ring
ha25.4 mmHeight outer ring
La295.3 mmPitchcircle diameter fixing holes outer ring
na12Number of fixing holes in outer ring
da263.4 mmOutside diameter inner ring
hi25.4 mmHeight of inner ring
dB8.7 mmFixing bore
dS13.7 mmCounterbore diameter of fixing holes
tS8.6 mmCounterbore depth of fixing holes
Li231.8 mmPitchcircle diameter fixing holes inner ring
ni12Number of fixing holes in inner ring
VSPmin0 mmMin. bearing preload
VSPmax0.02 mmMaximum bearing preload
Calculation factors for XU080264
Ca79000 NBasic dynamic load rating, axial
Cr56000 NBasic dynamic load rating, radial (for radial load only)
C0a148000 NBasic static load rating, axial
C0r73000 NBasic static load rating, radial (for radial load only)
Fr zul.21000 NMax. radial load screws
INA XU080264

INA XU080264 is in stock and ready for immediate shipment. We offer competitive pricing, fast delivery, and flexible shipping options worldwide.
