INA XU080149 bearings
INA Slewing ring, Crossed roller bearing, without gear teeth

Inquiry for price
INA Slewing ring, Crossed roller bearing, without gear teeth
Bore diameter
101.600 mm
Outside diameter
196.850 mm
Total width
22.220 mm
Cr
39000 N
C0r
37500 N
Ca
55000 N
C0a
77000 N
Net weight
3.28 kg
Measurement system
Metric
Sealing
Seal on both sides
Cage
Plastic spacers
Bearing material
Steel
Rolling material
Steel
Lubricant in bearing
Grease
Relubrication feature
With

In stock

Technical specification for INA XU080149

XU080149 INA
Part NumberXU080149
DescriptionSlewing ring, Crossed roller bearing, without gear teeth
Main Dimensions & Performance Data
di101.6 mmBore Diameter
 0.013 mmBore diameter upper tolerance
 0 mmBore diameter lower tolerance
Da196.85 mmOutside Diameter
 0 mmOutside diameter upper tolerance
 -0.046 mmOutside diameter lower tolerance
H22.22 mmHeigth
m3.28 kgWeight

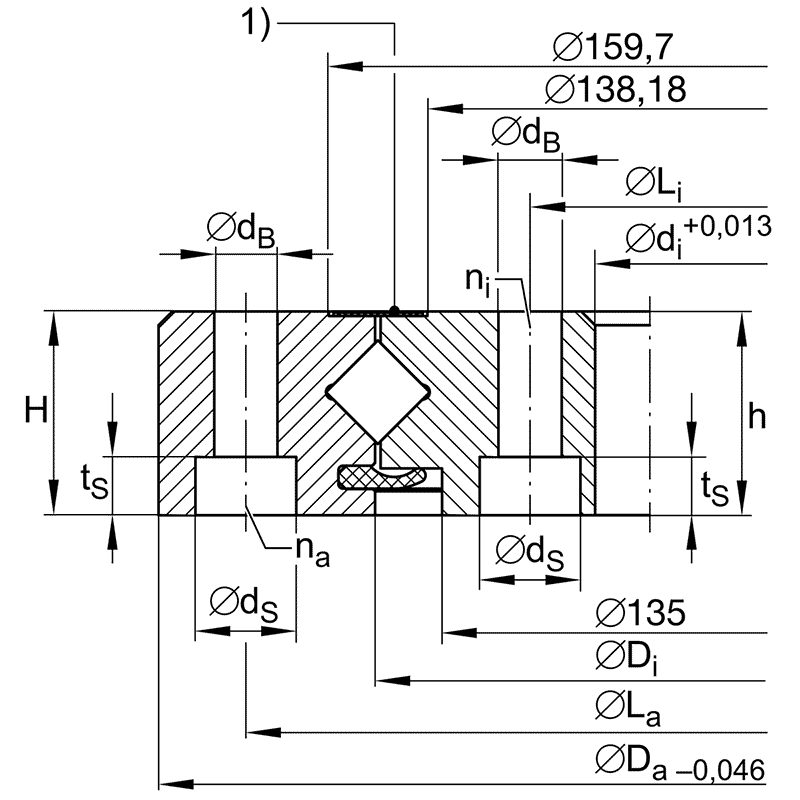

Dimensions of XSU080188
Di149.6 mmInner diameter outer ring
La177.8 mmPitchcircle diameter fixing holes outer ring
na16Number of fixing holes in outer ring
hi22.22 mmHeight of inner ring
dB6.9 mmFixing bore
dS11 mmCounterbore diameter of fixing holes
tS6.35 mmCounterbore depth of fixing holes
Li115.8 mmPitchcircle diameter fixing holes inner ring
ni16Number of fixing holes in inner ring
VSPmin0.005 mmMin. bearing preload
VSPmax0.02 mmMaximum bearing preload
Calculation factors for XSU080188
Ca55000 NBasic dynamic load rating, axial
Cr39000 NBasic dynamic load rating, radial (for radial load only)
C0a77000 NBasic static load rating, axial
C0r37500 NBasic static load rating, radial (for radial load only)
Fr zul.15400 NMax. radial load screws
INA XU080149

INA XU080149 is in stock and ready for immediate shipment. We offer competitive pricing, fast delivery, and flexible shipping options worldwide.
