INA SX011818-A bearings
SX011818-A INA crossed roller bearings

Inquiry for price
INA crossed roller bearings
Bore diameter
90.000 mm
Outside diameter
115.000 mm
Total width
13.000 mm
Cr
18900 N
C0r
43000 N
Ca
26500 N
C0a
87000 N
Net weight
0.354 kg
Measurement system
Metric
Sealing
Without
Cage
Plastic spacers
Bearing material
Steel
Rolling material
Steel
Tolerance class
Class5 (P5)
Lubricant in bearing
None
Relubrication feature
With

In stock

Technical specification for INA SX011818-A

SX011818-A INA
Part NumberSX011818-A
Main Dimensions & Performance Data
d 90 mm Bore Diameter
  0.004 mm Bore diameter upper tolerance
  -0.018 mm Bore diameter lower tolerance
Da 115 mm Outside Diameter
  0 mm Outside diameter upper tolerance
  -0.022 mm Outside diameter lower tolerance
H 13 mm Height of the assembled bearing
hi 13 mm Heigth inner ring
  0.06 mm Width upper tolerance
  -0.06 mm Width lower tolerance
m 0.354 kg Weight

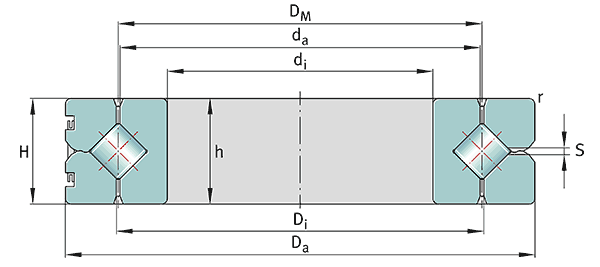

Dimensions of SX011818-A
Di 102.5 mm Inner diameter outer ring
DM 102 mm Rolling element pitch circle diameter
da 101.5 mm Outer diameter inner ring
h 13 mm Height of individual ring
  0 mm Height of individual ring upper tolerance
  -0.01 mm Height of individual ring lower tolerance
rmin 1 mm Chamfer dimension
S 1.2 mm Diameter of lubrication hole
Calculation factors for SX011818-A
  0.01 mm Running accuracy, radial
  0.01 mm Running accuracy, axial
Ca 26500 N Basic dynamic load rating, axial
C0a 87000 N Basic static load rating, axial
Cr 18900 N Basic dynamic load rating, radial (for radial load only)
C0r 43000 N Basic static load rating, radial (for radial load only)
NG oil 1,500 1/min Limiting speed for oil lubrication
NG Grease 750 1/min Limiting speed for grease lubrication
INA crossed roller bearings

INA SX011818-A crossed roller bearings are suitable, due to their high running accuracy, as bearings for high precision application (such as those in robots, machine tools, handling systems, precision mechanical and medical devices, vehicle components)
