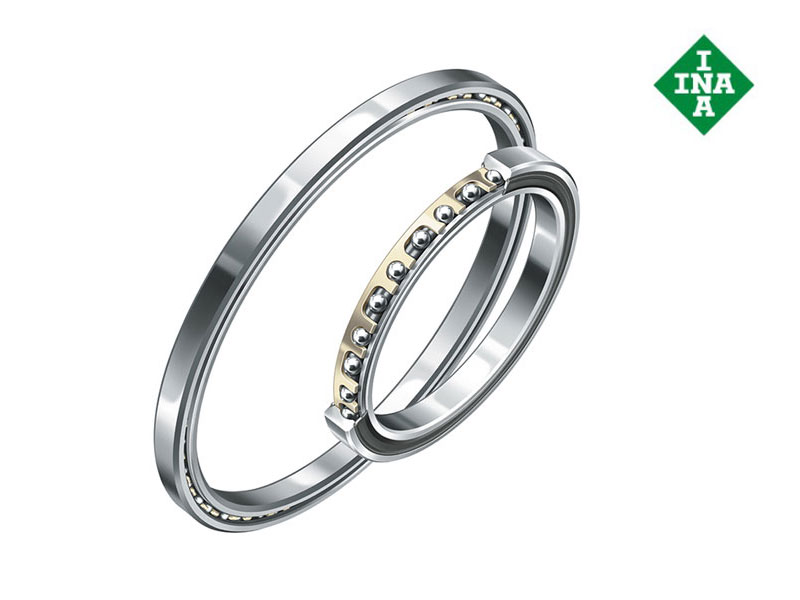

INA CSXG250-HLE bearings
Four point contact bearing, Thin section bearing CSXG, brass sheet metal cage
- Measurement system
- Inch
- Bore diameter
- 635.000 mm
- Outside diameter
- 685.500 mm
- Width
- 25.400 mm
- Cr
- 96000 N
- C0r
- 300000 N
- Limiting speed
- 350 r/min
- Net weight
- 8.83 kg
- Number of rows
- 1
- Contact angle deg
- 30
- Sealing
- Without
- Cage
- Brass sheet metal
- Bore type
- Cylindrical
- Outer diameter type
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- PL1
- Lubricant in bearing
- Without
In stock
Technical specification for INA CSXG250-HLE
| Part Number | CSXG250-HLE | |
|---|---|---|
| Logistical code | HLE | |
| Sealing | Without | not sealed |
| Cage | YH | brass sheet metal |
| Tolerance class | PL1 | Class PL1, Normal |
| Lubricant | Without | Bearing not greased |
| Main Dimensions & Performance Data | ||
| d | 635 mm 25 in | Bore diameter |
| D | 685.5 mm 26.988 in | Outside diameter |
| B | 25.4 mm 1 in | Width |
| Cr | 96000 N | Basic dynamic load rating, radial |
| C0r | 300000 N | Basic static load rating, radial |
| nG | 350 1/min | Limiting speed |
| m | ≈ 8.83 kg | Weight |
| Dimensions | ||
| rmin | 2 mm | Minimum chamfer dimension |
| d1 | 653.9 mm | Shoulder diameter inner ring |
| D1 | 667 mm | Shoulder diameter outer ring |
| α | 30° | Shoulder diameter outer ring |
INA CSXG250-HLE, Four point contact bearing, Thin section bearing CSXG, brass sheet metal cage. INA CSXG250-HLE have very small cross-sections relative to their diameters. This allows designs with smaller design envelope and lower mass, while achieving high rigidity and running accuracy.
INA CSXG250-HLE four point contact bearings (type X) can support axial loads in both directionsas well as radial loads. As a result, they act in the same way asdouble row angular contact ball bearings.
