FAG 7603025-2RS-TVP bearings
Axial angular contact ball bearings 7603..-2RS, single direction, with contact angle 60, restricted tolerances, lip seals on both sides
- Measurement system
- Metric
- Bore diameter
- 25.000 mm
- Outside diameter
- 62.000 mm
- Height
- 17.000 mm
- Ca
- 29500 N
- C0a
- 68000 N
- Limiting speed
- 5100 r/min
- Net weight
- 0.275 kg
- Number of rows
- 1
- Contact angle deg
- 60
- Sealing
- Contact seal on both sides
- Cage
- Plastic
- Arrangement
- Universal bearing
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Special
- Lubricant in bearing
- Grease
- Relubrication feature
- Without
In stock
Technical specification for FAG 7603025-2RS-TVP
| Part Number | 7603025-2RS-TVP | |
|---|---|---|
| Main Dimensions & Performance Data | ||
| d | 25 mm | Bore diameter |
| 0 mm | Bore diameter upper tolerance | |
| -0.005 mm | Bore diameter lower tolerance | |
| D | 62 mm | Outside diameter |
| 0 mm | Outside diameter upper tolerance | |
| -0.007 mm | Outside diameter lower tolerance | |
| B | 17 mm | Width |
| 0 mm | Width upper tolerance | |
| -0.12 mm | Width lower tolerance | |
| Ca | 29500 N | Basic dynamic load rating, axial |
| C0a | 68000 N | Basic static load rating, axial |
| Cua | 3100 N | Fatigue load limit, axial |
| nG Grease | 5100 1/min | Limiting speed for grease lubrication |
| n∂ | 3800 1/min | Thermally safe operating speed |
| m | ≈ 0.275 kg | Weight |

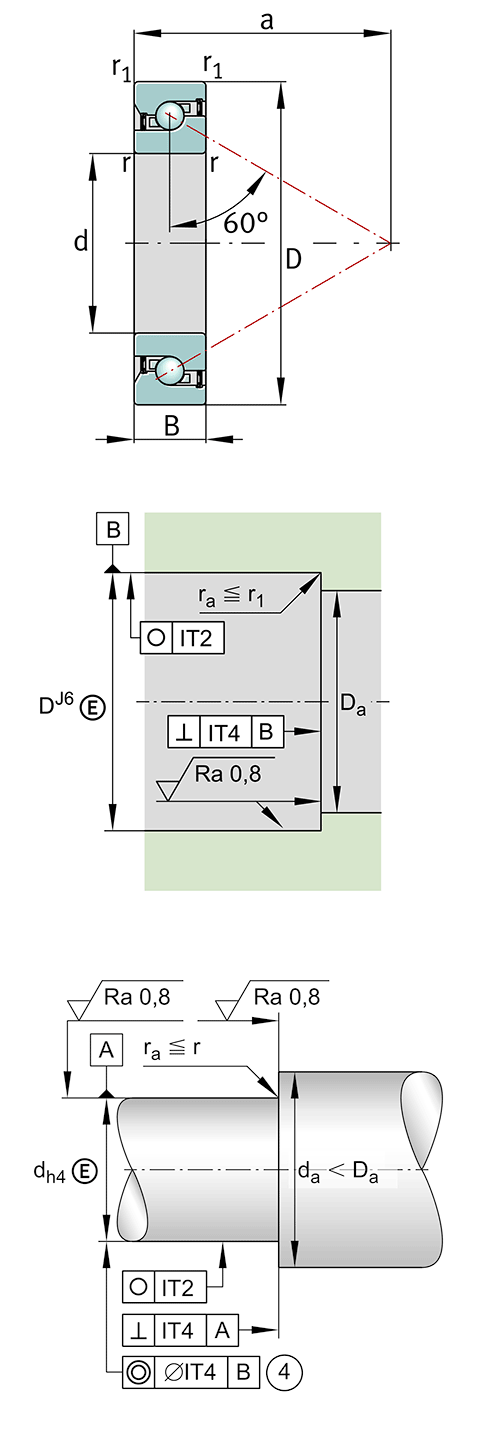

| Mounting dimensions | ||
| Da | 52 mm | Diameter of housing |
| Da | H12 | Diameter of housing clearance |
| da | 38 mm | Diameter shaft |
| da | h12 mm | Diameter shaft clearance |
| Dimensions | ||
| rmin | 1.1 mm | Minimum chamfer dimension |
| r1 min | 1.1 mm | Minimum chamfer dimension |
| a | 47.5 mm | Distance between the apexes of the pressure cones |
| α | 60° | Contact angle |
| Additional information | ||
| MR | 0.09 Nm | Bearing frictional torque |
| CaL | 917 N/µm | Rigidity axial |
| 2 µm | Axial runout | |
| ZM25 | Recommended INA precision locknut for radial locking | |
| AM25 | Recommended INA precision locknut for axial locking | |
| MA | 40 Nm | Tightening torque for the recommended INA precision locknut |
| 14480 N | Required locknut force axial | |
FAG 7603025-2RS-TVP - Axial angular contact ball bearings 7603..-2RS, single direction, with contact angle 60, restricted tolerances, lip seals on both sides.
7603025-2RS-TVP FAG angular contact ball bearings for screw drives are single row precision bearings. They can support radial forces as well as axial forces in one direction. The bearing rings are matched to each other such that a defined preload is achieved when the rings are clamped in place using a precision locknut. 7603025-2RS-TVP FAG have contact lip seals on both sides.
