FAG NJ2213-E-XL-M1 bearings
Cylindrical roller bearing NJ..-E-XL-M1, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ, Replaces: NJ2213-E-M1 , NJ2213E.M1
- Measurement system
- Metric
- Bore diameter
- 65.000 mm
- Outside diameter
- 120.000 mm
- Width
- 31.000 mm
- Cr
- 177000 N
- C0r
- 182000 N
- Limiting speed
- 10600 r/min
- Net weight
- 1.61 kg
- Number of rows
- 1
- Sealing
- Without
- Cage
- Brass
- Bore type
- Cylindrical
- Outer diameter type
- Cylindrical
- Bearing material
- Steel
- Rolling material
- Steel
- Tolerance class
- Normal (PN)
- Internal clearance
- CN
- Lubricant in bearing
- None
- Relubrication feature
- Without
In stock
Technical specification for FAG NJ2213-E-XL-M1
| Part Number | NJ2213-E-XL-M1 | |
|---|---|---|
| Main Dimensions & Performance Data | ||
| d | 65 mm | Bore diameter |
| D | 120 mm | Outside diameter |
| B | 31 mm | Width |
| Cr | 177000 N | Basic dynamic load rating, radial |
| C0r | 182000 N | Basic static load rating, radial |
| Cur | 33500 N | Fatigue load limit, radial |
| nG | 10600 1/min | Limiting speed |
| nϑr | 4100 1/min | Reference speed |
| m | 1.61 kg | Weight |

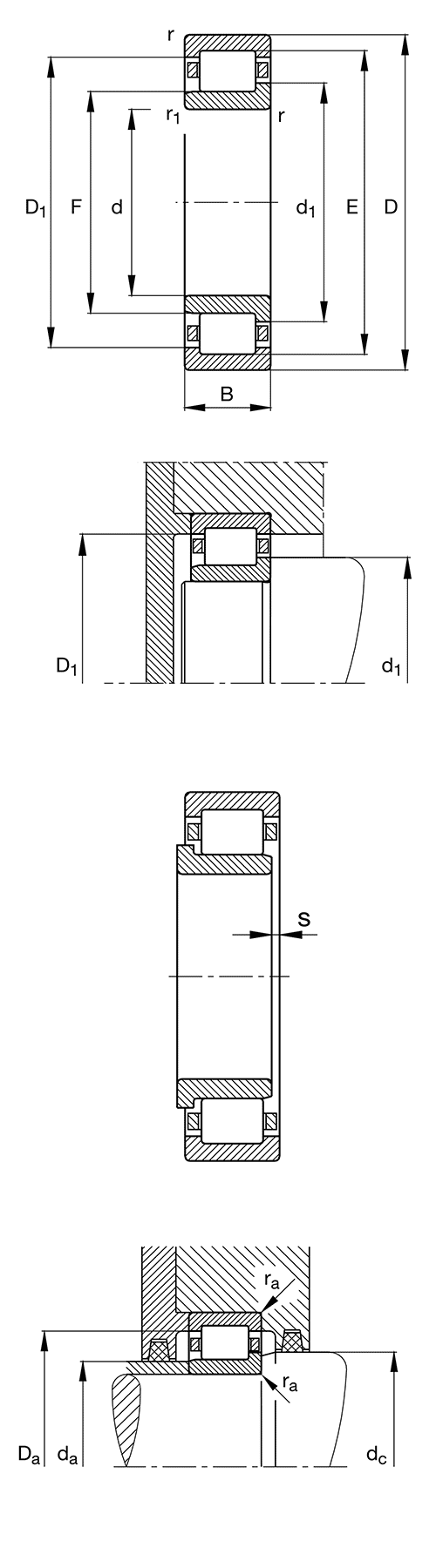

| Mounting dimensions | ||
| da min | 74 mm | Minimum diameter shaft shoulder |
| da max | 77 mm | Maximum diameter of shaft shoulder |
| Da max | 111 mm | Maximum diameter of housing shoulder |
| dc min | 87 mm | Minimum shaft shoulder |
| ra max | 1.5 mm | Maximum recess radius |
| Dimensions | ||
| rmin | 1.5 mm | Minimum chamfer dimension |
| r1 min | 1.5 mm | Minimum chamfer dimension |
| s | 1.9 mm | Axial displacement |
| E | 108.5 mm | Raceway diameter outer ring |
| F | 78.5 mm | Raceway diameter inner ring |
| D1 min | 104.34 mm | Minimum rib diameter outer ring |
| d1 | 84.4 mm | Maximum rib diameter inner ring |
| Additional information | ||
| HJ2213-E | L-washer | |
FAG NJ2213-E-XL-M1 - Cylindrical roller bearing NJ..-E-XL-M1, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ.
NJ2213-E-XL-M1 FAG have high rigidity, high radial load-carrying capacity and, due to the cage, are suitable for higher speeds than full-complement designs. NJ2213-E-XL-M1 bearings with suffix E have a larger roller set and are thus designed for extremely high load-carrying capacity.
NJ2213-E-XL-M1 FAG have two rigid ribs on the inner ring and one rigid rib on the inner ring. In NJ2213-E-XL-M1 FAG bearings, axial displacements of the shaft relative to the housing are possible in one direction only.NJ2213-E-XL-M1 bearings are used as semi-locating bearings, they can guide the shaft axially in one direction.
