SKF 6001-2RSLTN9/HC5C3WT bearings
SKF hybrid ceramic deep groove ball bearing with low-friction seals
- Measurement system
- Metric
- Bore diameter
- 12.000 mm
- Outside diameter
- 28.000 mm
- Width
- 8.000 mm
- Cr
- 5070 N
- C0r
- 2360 N
- Limiting speed
- 30000 r/min
- Net weight
- 0.0178 kg
- Number of rows
- 1
- Sealing
- Seal on both sides
- Cage
- Plastic cage
- Bearing material
- Steel
- Rolling material
- Ceramic balls
- Internal clearance
- C3
- Lubricant in bearing
- Grease
- Relubrication feature
- Without
In stock
Technical specification for SKF 6001-2RSLTN9/HC5C3WT
| Part Number | 6001-2RSLTN9/HC5C3WT | |
|---|---|---|
| Description | Hybrid ceramic deep groove ball bearing with low-friction seals on both sides | |
| Number of rows | 1 | |
| Material | Hybrid (ceramic balls) | |
| Cage | Plastic cage | |
| Radial internal clearance | C3 | |
| Sealing | Seal on both sides | |

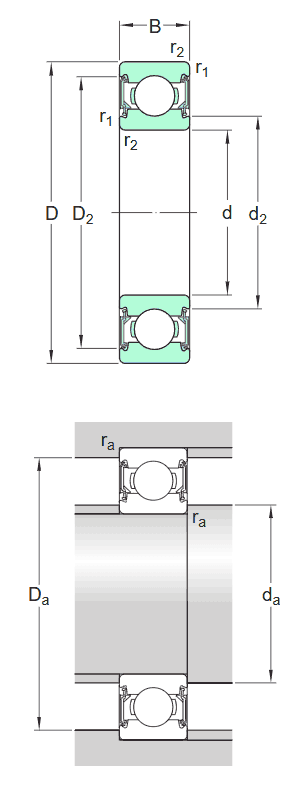

| Dimensions | ||
| d | 12.0 mm | Bore diameter |
| D | 28.0 mm | Outside diameter |
| B | 8.0 mm | Width |
| d2 | ≈15.2 mm | Recess diameter inner ring shoulder |
| D2 | ≈24.72 mm | Recess diameter outer ring shoulder |
| r1,2 | min. 0.3 mm | Chamfer dimension |
| Calculation Data | ||
| da | min. 14 mm | Abutment diameter shaft |
| da | max. 15 mm | Abutment diameter shaft |
| Da | max. 26 mm | Abutment diameter housing |
| ra | max. 0.3 mm | Fillet radius |
| Abutment dimensions | ||
| C | 5.07 kN | Basic dynamic load rating |
| C0 | 2.36 kN | Basic static load rating |
| Pu | 0.072 kN | Fatigue load limit |
| 63000.0 r/min | Reference speed | |
| 30000.0 r/min | Limiting speed | |
Hybrid ceramic single row deep groove ball bearings with low-friction seals on both sides have rings made of bearing steel and rolling elements made of bearing grade silicon nitride, which make the bearings electrically insulating. The low-friction seals provide better sealing effectiveness than shields and non-contact seals, thus providing significantly prolonged bearing service life, yet they can still operate at the same speeds as shields. The ceramic rolling elements not only provide protection from electric current damage but also, when compared to same-sized bearings with steel rolling elements, provide enhanced bearing performance, extended bearing service life, higher speed capability, high wear-resistance, high bearing stiffness, reduced risk of smearing and false brinelling and less sensitivity to temperature gradients, making them suitable for use in dificult conditions and contaminated environments.
Dimensions and Performance of SKF 6001-2RSLTN9/HC5C3WT:
- Bore diameter: 12.0 mm
- Outside diameter: 28.0 mm
- Width: 8.0 mm
- Basic dynamic load rating: 5.07 kN
- Basic static load rating: 2.36 kN
